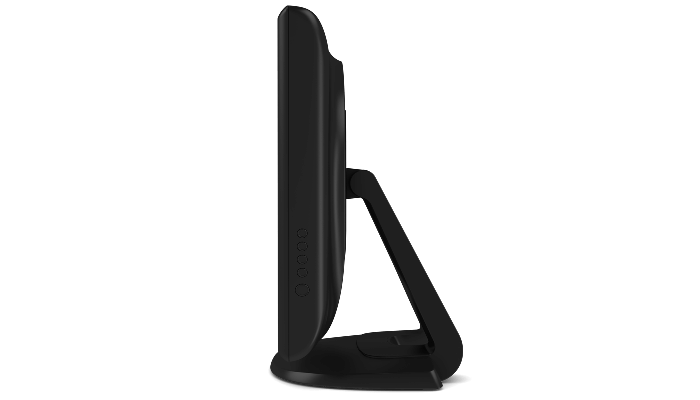

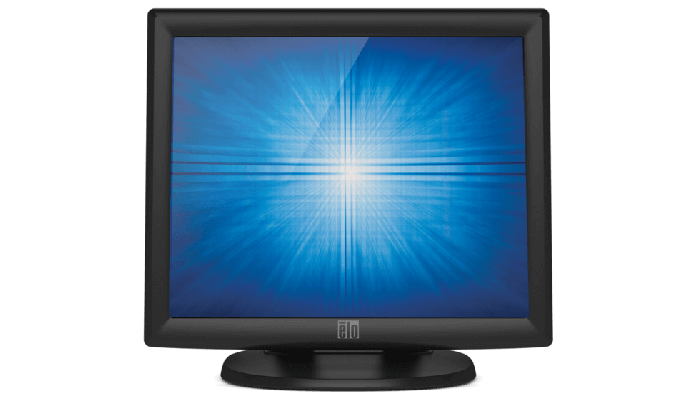

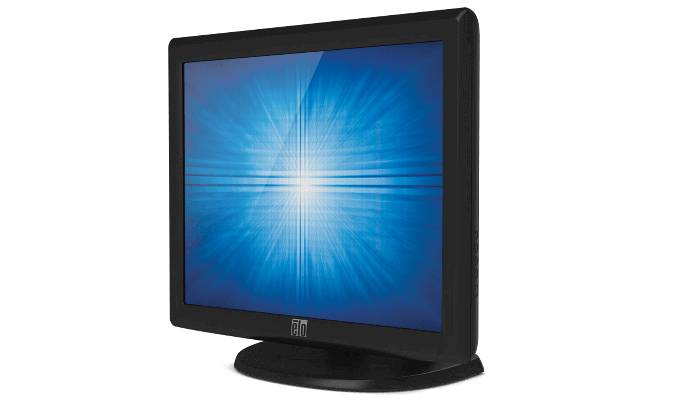

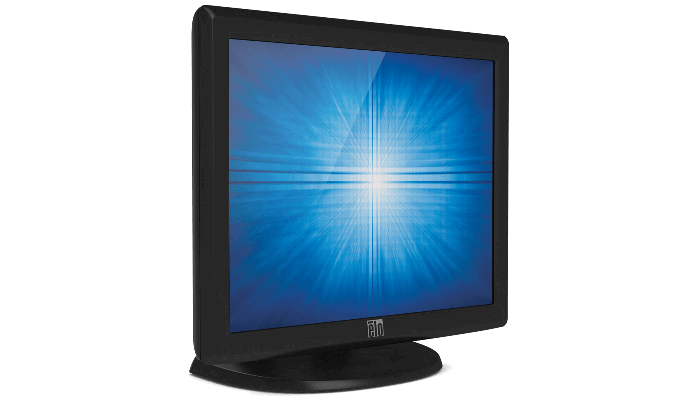

1515L 15" Touchscreen monitor (Discontinued March 2015)
Overview
The 1515L touchmonitors are designed, developed and built to provide the most cost-effective touch solutions for system integrators and VARs. Aimed at the fast-changing retail POS and hospitality markets, they provide reliable, durable operation and come from the worldwide leader in touchmonitors, Elo Touch Solutions. The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments. The 1515L features a choice of touchscreen technologies: AccuTouch® five-wire resistive technology, the most widely used for retail applications and proven to survive splashing liquids, food and grease; IntelliTouch® pure glass surface wave technology, for the ultimate in optical quality for dry retail and hospitality applications; Acoustic Pulse Recognition for a pure-glass surface that recognizes sound from both hard and soft stylus touches; projected capacitive for a durable, zero-bezel, glass-to-edge surface with multi-touch*.
Other features.
- Economical and reliable
- Up to 1024 x 768 resolution at 75 Hz
- Available with AccuTouch Five-Wire Resistive Technology (activated with fingernails, gloves, credit cards, or any stylus), IntelliTouch Surface Wave Technology for superior image quality (activated with finger or glove), Acoustic Pulse Recognition Technology or projected capacitive (PCAP) zero-bezel touchscreen
- Optional ergonomic 3 stripe MSR available in two versions - USB with keyboard emulation and USB with human interface device (HID) class specification 1.1
- Sealed touchscreen
- Dual serial/USB interface
- Removable stand and VESA mounting option
- Mounting holes on stand bottom for tabletop security
- Controls on the side rather than the front, plus lockout function for public use
- Digital on-screen display (OSD)
- Internal power supply
- Worldwide agency approvals
Merkmale
-
Technische
Artikelnummer(n)
AccuTouch (China) - E183106
AccuTouch (Americas) - E290484
Acoustic Pulse Recognition (Americas) - E176383
Acoustic Pulse Recognition (Americas) - E538481
Acoustic Pulse Recognition (China) - E557524
Acoustic Pulse Recognition (EMEA) - E817158
Acoustic Pulse Recognition (EMEA) - E778289
IntelliTouch (Americas) - E036936
IntelliTouch (China) - E447013Gehäusefarbe
Schwarz
Touchtechnologie & Leistung
5-Draht-Widerstandstechnologie (AccuTouch®) - Single-Touch
SAW (IntelliTouch® akustische Oberflächenwelle) – Single Touch
PCAP (projizierte Kapazitivsensorik) - 2-Touch
Akustische Impulserkennung - Single TouchBilddiagonale
15 zoll diagonal, Active-Matrix-TFT-LCD (LED)
Seitenverhältnis
4:3
Aktiver Bereich
12.0" x 9.0" / 304 mm x 228 mm
Auflösung
1024 x 768
Andere unterstützte Auflösungen
1024 x 768 60, 70, 75 Hz
1024 x 768 65 Hz (Sun)
832 x 624 at 75 Hz (Mac)
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
640 x 350 70 Hz
640 x 480 60, 72, 75 Hz
640 x 480 66 Hz (Mac)Blickwinkel
Horizontal: ±70° oder 140° insgesamt / Vertikal: 65°/60° oder 125° insgesamt
Farben
16,7 Millionen
Helligkeit (typisch)
LCD panel: 250 nits
AccuTouch: 200 nits
Acoustic Pulse Recognition: 225 nits
IntelliTouch: 225 nits
Projected Capacitive: 225 nitsReaktionszeit gesamt (typisch)
11.7 msec
Kontrastverhältnis
500:1
On-Screen-Display (OSD)
Controls (side): menu, up, down, select, power
Settings: contrast, brightness, H/V position, RGB (color temp), clock, phase, recall
Languages: English, German, Spanish, Japanese, French Lockouts: power, user controlsVideo-Eingangsformat
Analog VGA
Video-Eingangssignalanschluss
Mini D-Sub 15-Pin VGA type
Stromverbrauch (typisch)
30W
Stromversorgung
Internal AC, Optional external DC (power brick)
Eingangsspannung
AC: 100-240 VAC, 50/60 Hz / DC: +12VDC ±5%
Eingangsanschluss
AC: IEC 60320 C6 / DC: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)
Eingangsfrequenz
Horizontal: 31.5-60.2 kHz / Vertical: 56.3-75 Hz
Monitorabmessungen (mit Standfuß)
13.8" x 12.2" x 6.9" / 350 mm x 310 mm x 175 mm
Dimensions vary with stand position and options selectedVersandabmessungen
17.52" x 14.96" x 10.24" / 445mm x 380 mm x 260 mm
Gewicht (mit Standfuß)
10.6 lb / 4.8 kg
Gewicht (ohne Standfuß)
7.3 lb / 3.3 kg
Versandgewicht (mit Standfuß)
15.4 lb / 7.0 kg
Betriebstemperatur
0°C to 40°C / 32°F to 104°F
Lagertemperatur
-20°C to 60°C / -4°F to 140°F
Feuchtigkeit
Operating: 20%-80%
Storage: 10%-90%Siegelfähigkeit
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF
50.000 Stunden, nachgewiesen
Standbewegungsoption
Removable
Montageoptionen
75 mm VESA mount
Threaded-through mounting holes, under standWeitere Merkmale
Security lock receptacle
Garantie
3 Jahre
Zertifizierungen und Konformitätserklärungen
North America/Worldwide: UL, cUL ,FCC, CE, Semko or Demko, VCCI, ICES, C-TICK, MPRII, Argentina S-Mark
Asia: UL, cUL, FCC, CE, Semko, VCCI, IC, C-TICK, MPRII, Argentina S-Mark, BSMI, CCC, KC, China RoHSStromkabel
A North American power cable is included with the part numbers available in the regions other than EMEA. European and UK AC power cables are included with the part numbers available for the EMEA region.
Ersatz-DC-Netzteil
The monitor may also be powered with DC voltage. An optional 12V DC power brick, part number E757851, is available at additional cost. AC power cables for power brick are also available at additional cost:
United States: Elo P/N - E042259
Europe: Elo P/N - E690013
United Kingdom: Elo P/N - E235317AC-Stromkabel
AC power cables for power brick are also available at additional cost:
United States: Elo P/N - E042259
Europe: Elo P/N - E690013
United Kingdom: Elo P/N - E235317Optionaler IntelliTouch-Stylus-Stift
Stylus pen with rubber tip, designed specifically for use with IntelliTouch surface acoustic wave touch technology. Elo P/N: D82064-000, available at additional cost.
Optional Acoustic Pulse Recognition (APR) Stylus Pen
Stylus pen with metal tip, designed specifically for use with Acoustic Pulse Recognition (APR) technology. Part number E963860, available at additional cost.
Touch/Videokabel
Detachable touch and video cables are included.
Optionales Zubehör
Magnetstreifenleser - Elo Teilenr: E623874
Optionaler Standfuß
Elo P/N: E245090, available at additional cost.
