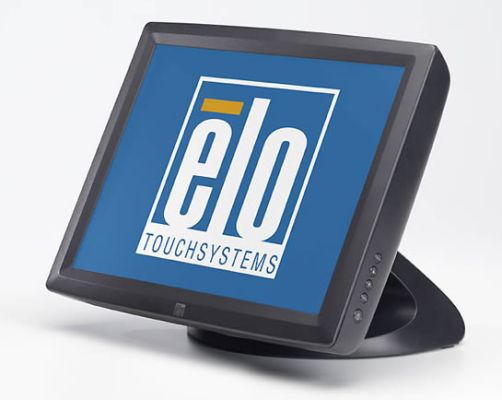

1522L 15" Touchscreen Monitor (Discontinued December 2013)
Overview
The 1522L 15" LCD desktop touchmonitor offers the same sleek design as the 1529L 15" LCD desktop model, but is more cost effective for the end user. The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments. The 1522L also incorporates hidden cable management, resulting in a convenient, space saving design that makes the touchmonitor ideal for POS applications. The 1522L is offered with a choice of touch technologies: IntelliTouch® surface acoustic wave, AccuTouch® five-wire resistive, and Acoustic Pulse Recognition. In addition, there are options for a beige or gray bezel and a short or tall stand.
Other features.
- Long lasting product cycle – enclosure controlled by Elo specifications
- Small integrated design
- A touchmonitor that can function as a desktop or wall-mountable system
- Available with Acoustic Pulse Recognition, AccuTouch Five-Wire Resistive Technology and IntelliTouch Surface-Wave Technology
- Optional ergonomic 3 stripe MSR available in two versions: USB with keyboard emulation; and USB with human interface device (HID) class specification 1.1
- Touchscreen sealed to resist dirt, dust and splashes
- "Designed for touch" from the ground-up; stable tilt stand; cables hidden from user's view
- Controls on the side rather than the front, plus lockout function for public use
- Choice of short or tall monitor stand
- Choice of gray or beige finish
- Mounting holes on stand bottom for tabletop security
- Stand removable, VESA mounting option
- Worldwide agency approvals
- Security lock receptacle
- 3 year warranty
Merkmale
-
Technische
Artikelnummer(n)
AccuTouch (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E518492
IntelliTouch (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E467495Gehäusefarbe
Dark Gray or Beige
Touchtechnologie & Leistung
5-Draht-Widerstandstechnologie (AccuTouch®) - Single-Touch
SAW (IntelliTouch® akustische Oberflächenwelle) – Single TouchBilddiagonale
15 zoll diagonal, Active-Matrix-TFT-LCD (LED)
Seitenverhältnis
4:3
Aktiver Bereich
12.0" x 9.0" / 304 mm x 228 mm
Auflösung
1024 x 768 at 60 Hz
Andere unterstützte Auflösungen
1024 x 768 at 60, 65, 70 or 75 Hz
832 x 624 at 75 Hz
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66 Hz (Mac), 72 or 75 HzBlickwinkel
Horizontal: ± 70° oder 140° insgesamt / Vertikal: ± 60° oder 120° insgesamt
Farben
16,7 Millionen
Helligkeit (typisch)
LCD panel: 250 nits
AccuTouch: 200 nits
IntelliTouch: 230 nitsReaktionszeit gesamt (typisch)
12 msec
Kontrastverhältnis
500:1
Touch-Benutzerschnittstelle
USB
On-Screen-Display (OSD)
Controls (side): menu, up, down, select, power
Settings: contrast, brightness, V-position, H-position, RGB, volume, YUV, phase, clock, OSD H-position, OSD V-position, OSD time, auto adjust, input select
Languages: English, French, German, Spanish, Japanese
Lockouts: power, user controlsLautsprecher
Two watt/channel speakers located in display head
Video-Eingangsformat
Analog VGA
Video-Eingangssignalanschluss
Mini D-Sub 15-Pin VGA type
Stromverbrauch (typisch)
30W
Stromversorgung
Internal AC, Optional external DC (power brick)
Eingangsspannung
AC: 90-265 VAC, 50/60 Hz; DC: 12.0V ± 0.75V
Eingangsanschluss
AC: IEC 60320 C6; DC: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)
Eingangsfrequenz
Horizontal: 31.5-60.2 kHz / Vertical: 56.3-75 Hz
Monitorabmessungen (mit Standfuß)
14.0" x 11.3" x 11.0" / 355mm x 286mm x 278mm
Versandabmessungen
Short stand: 17.53" x 13.00" x 14.97" / 445 mm x 330 mm x 380 mm
Tall stand: 17.53" x 11.03" x 17.34" / 445 mm x 280 mm x 440 mmGewicht (mit Standfuß)
Short stand: 14.3lbs / 6.5 kg
Tall stand: 14.9lbs / 6.8 kgVersandgewicht (mit Standfuß)
Short stand: 19.6 lbs / 8.9 kg
Tall stand: 20.2 lbs / 9.2 kgBetriebstemperatur
0°C to 40°C / 32°F to 104°F
Lagertemperatur
-20°C to 60°C (-4°F to 140°F)
Feuchtigkeit
Operating: 20-80%
Storage: 5-95%
noncondensingSiegelfähigkeit
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF
50.000 Stunden, nachgewiesen
Standbewegungsoption
Tilt, removable, short or tall stand
Montageoptionen
75mm VESA mount
Weitere Merkmale
2 stage DPMS
VESA DDC Plug and Play
Security lock receptacleGarantie
3 Jahre
Zertifizierungen und Konformitätserklärungen
EMC: CE, C-Tick, FCC, VCCI (Class B)
Safety: CB, CE, cULus, S (Argentina), TÜV T MarkAC-Stromkabel
North American and European AC power cables are included.
For touchmonitors being shipped to the United Kingdom, add a UK AC power cable at no cost by specifying Elo P/N: E540272.
AC power cables for power brick are also available at additional cost:
United States - Elo P/N: E042259
Europe - Elo P/N: E690013
United Kingdom - Elo P/N: E235317Optionales Netzteil
The monitor may also be powered with DC voltage. An optional 12V DC power brick, Elo P/N: E757851, is available at additional cost.
Optionaler IntelliTouch-Stylus-Stift
D82064-000, available at additional cost.
Touch/Videokabel
All appropriate cables are included and are detachable.
Optionales Zubehör
Magnetstreifenleser (Dunkelgrau) - Elo Teilenr: E757859
Magnetstreifenleser (Beige) - Elo Teilenr: E895934
