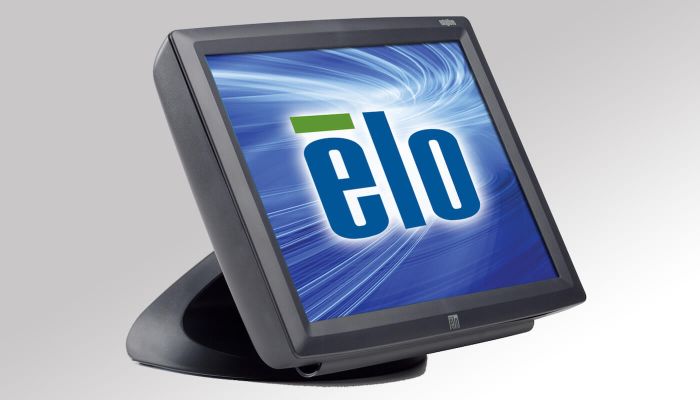

1529L 15" Touchscreen Monitor (Discontinued October 2012)

Merkmale

• Technische

  ---

  Artikelnummer(n)

  AccuTouch (USB, Antiglare, Worldwide) - E564135
  AccuTouch (USB, Antiglare, Worldwide) - E580588
  Acoustic Pulse Recognition (USB, Antiglare, Worldwide) - E353946
  Acoustic Pulse Recognition (USB, Antiglare, Worldwide) - E680845
  Acoustic Pulse Recognition (USB, Antiglare, Worldwide) - E700641
  Acoustic Pulse Recognition (USB, Antiglare, Worldwide) - E700641
  CarrollTouch (Serial/USB, Antiglare, Worldwide) - E392726

  Gehäusefarbe

  Dark Gray or Beige

  Touchtechnologie & Leistung

  5-Draht-Widerstandstechnologie (AccuTouch®) - Single-Touch
  Akustische Impulserkennung - Single Touch
  CarrollTouch Infrared Technology

  Bilddiagonale

  15 zoll diagonal, Active-Matrix-TFT-LCD (LED)

  Seitenverhältnis

  4:3

  Aktiver Bereich

  12.0" x 9.0" / 304 mm x 228 mm

  Auflösung

  1024 x 768 at 60 Hz

  Andere unterstützte Auflösungen

  1024 x 768 at 60, 65, 70 or 75 Hz
  832 x 624 at 75 Hz
  800 x 600 at 56, 60, 72 or 75 Hz
  720 x 400 at 70 Hz
  720 x 350 at 70 Hz
  640 x 480 at 60, 66 Hz (Mac), 72 or 75 Hz

  Blickwinkel

  Horizontal: ± 70° oder 140° insgesamt / Vertikal: ± 60° oder 120° insgesamt

  Farben

  16,2 Millionen

  Helligkeit (typisch)

  LCD panel: 350 nits
  AccuTouch: 280 nits
  Acoustic Pulse Recognition: 322 nits
  CarrollTouch: 322 nits

  Reaktionszeit gesamt (typisch)

  12 msec

  Kontrastverhältnis

  400:1

  Touch Interfaces

  USB: E564135, E580588, E353946, E680845, E700641, E700641
  Serial/USB: E392726


  On-Screen-Display (OSD)

  Controls (side): menu, up, down, select, power
  Settings: contrast, brightness, V-position, H-position, RGB, volume, YUV, phase, clock, OSD H-position, OSD V-position, OSD time, auto adjust, input select
  Languages: English, French, German, Spanish, Japanese
  Lockouts: power, user controls

  Lautsprecher

  Two watt/channel speakers located in display head

  Video-Eingangsformat

  Analog VGA, DVI-D

  Video-Eingangssignalanschluss

  Mini D-Sub 15-Pin VGA type, DVI-D connector

  Stromverbrauch (typisch)

  Monitor: 20 W
  USB magnetic stripe reader: 0.5 W
  2 USB external ports power when loaded: 5 W
  Total with all possible accessories: 31 W

  Stromversorgung

  Internal AC, Optional external DC (power brick)

  Eingangsspannung

  AC: 90-265 VAC, 50/60 Hz; DC: 12.0V ± 0.75V

  Eingangsanschluss

  AC: IEC 60320 C6; DC: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)

  Eingangsfrequenz

  Horizontal: 31-60 kHz / Vertical: 56-75 Hz

  Monitorabmessungen (mit Standfuß)

  14.0" x 11.3" x 10.4" / 355mm x 286mm x 265mm

  Versandabmessungen

  Tall stand: 21.65" x 19.69" x 11.02" / 550mm x 500mm x 280mm
  Short stand with scanner: 21.65" x 13.58" x 16.73" / 550mm x 345mm x 425mm
  Short stand: 19.09" x 13.00" x 16.73" / 485mm x 330mm x 425mm

  Gewicht (mit Standfuß)

  Short stand: 14.4 lbs / 6.6 kg

  Gewicht (ohne Standfuß)

  10.6 lbs / 4.8 kg

  Versandgewicht (mit Standfuß)

  Short stand: 21.2 lbs / 9.6 kg

  Betriebstemperatur

  0°C to 40°C / 32°F to 104°F

  Lagertemperatur

  -20°C to 60°C / -4°F to 140°F

  Feuchtigkeit

  Operating: 20-80%
  Storage: 5-95%
  noncondensing

  Siegelfähigkeit

  Touchscreen sealed to bezel
  Touchscreen sealed to LCD

  MTBF

  50.000 Stunden, nachgewiesen

  Standbewegungsoption

  Tilt, removable, reverse (wall mount), short or tall stand

  Montageoptionen

  75 mm VESA mount

  Weitere Merkmale

  Energy save mode (less than 2 watts)
  2 stage DPMS
  VESA DDC Plug and Play
  Security lock receptacle
  Two external USB ports

  Garantie

  3 Jahre

  Zertifizierungen und Konformitätserklärungen

  UL, cUL, FCC-A, Semko, CE, VCCI, C-Tick

  AC-Stromkabel

  North American and European AC power cables are included.

  For touchmonitors being shipped to the United Kingdom, add a UK AC power cable at no cost by specifying Elo P/N: E540272.

  AC power cables for power brick are also available at additional cost:
  United States: Elo P/N: E042259
  Europe: Elo P/N: E690013
  United Kingdom: Elo P/N: E235317

  Optionales Netzteil

  The monitor may also be powered with DC voltage. An optional 12V DC power brick, Elo P/N: E137360, is available at additional cost.

  Optional Acoustic Pulse Recognition (APR) Stylus Pen

  E963860, available at additional cost.

  Touch/Videokabel

  All appropriate cables are included and are detachable.

  Ständer, Halterungen & Kits

  Short Desktop stand (Dark gray) - Elo p/n: E252977
  Tall Desktop stand (Dark gray) - Elo p/n: E930466
  Short Desktop stand (Beige) - Elo p/n: E819036
  Tall Desktop stand (Beige) - Elo p/n: E024520
  1529L VESA Plate – Elo p/n: E295293
