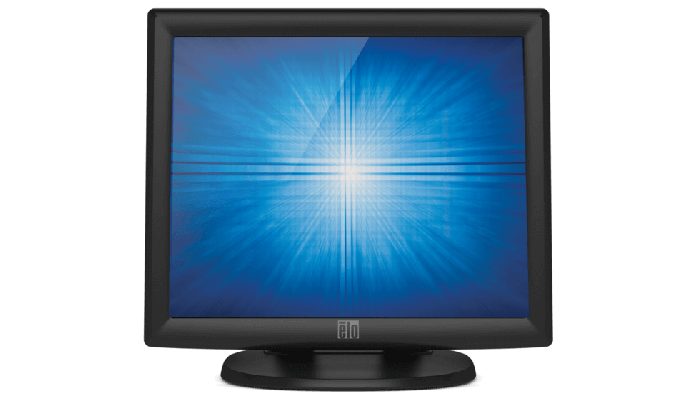

1715L 17" Touchscreen Monitor (Discontinued October 2012)
Overview
The 1715L touchmonitor is designed, developed and built to provide the most cost-effective touch solutions for system integrators and VARs. It packs Elo quality and reliability into an integrated, affordable touchmonitor. The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.
Other features.
- Entry-level monitor with Elo quality
- "Designed for touch" features such as a stable tilt stand
- Long-lasting product cycle
- Sealed touchscreen
- Dual serial/USB interface
- Removable stand and VESA mounting option
- Mounting holes on stand bottom for tabletop security
- Controls on the side rather than the front, plus lockout function for public use
- Digital on-screen display (OSD)
- Worldwide agency approvals
Merkmale
-
Technische
Artikelnummer(n)
APR (Antiglare) - E832132 (Americas, EMEA)
AccuTouch (Antiglare) - E162119 (Asia/Pacific)
APR (Antiglare) - E441167 (Asia/Pacific)
IntelliTouch (Antiglare) - E783252 (Asia/Pacific)
Projected Capacitive (Clear) - E230052 (Worldwide)Gehäusefarbe
Dunkelgrau
Touchtechnologie & Leistung
5-Draht-Widerstandstechnologie (AccuTouch®) - Single-Touch
SAW (IntelliTouch® akustische Oberflächenwelle) – Single Touch
PCAP (TouchPro® projizierte Kapazitivsensorik) – 10 Touch
Akustische Impulserkennung - Single TouchBilddiagonale
17 zoll diagonal, Active-Matrix-TFT-LCD (LED)
Seitenverhältnis
5:4
Aktiver Bereich
13.3" x 10.6" / 338mm x 270mm
Auflösung
1280 x 1024
Andere unterstützte Auflösungen
1280 x 1024 60, 75 Hz
1280 x 960 60 Hz
1152 x 864 75 Hz
1024 x 768 60, 70, 75 Hz
1024 x 768 65 Hz (Sun)
832 x 624 75 Hz (Mac)
800 x 600 56, 60, 72, 75 Hz
720 x 400 70 Hz
720 x 350 70 Hz
640 x 480 60, 72, 75 Hz
640 x 480 66 Hz (Mac)Blickwinkel
Horizontal: ±80° oder 160° insgesamt / Vertikal: ±80° oder 160° insgesamt
Farben
16,7 Millionen
Helligkeit (typisch)
LCD panel: 250 nits
AccuTouch: 200 nits
APR: 225 nits
IntelliTouch: 225 nits
Projected Capacitive: 225 nitsReaktionszeit gesamt (typisch)
25 msec
Kontrastverhältnis
800:1
Touch-Benutzerschnittstelle
Dual serial/USB: E603162, E719160, E162119, E783252
USB: E832132, E441167, E230052On-Screen-Display (OSD)
Controls (side): menu, up, down, select, power
Settings: contrast, brightness, H/V position, RGB (color temp), clock, phase, recall
Languages: English, German, Spanish, Japanese, French
Lockouts: power, user controlsVideo-Eingangsformat
Analog VGA
Video-Eingangssignalanschluss
Mini D-Sub 15-Pin VGA type
Stromverbrauch (typisch)
AC: 36W
DC: Monitor only: 29W; Monitor + AC/DC Adapter: 36WStromversorgung
Internal AC, Optional external DC (power brick)
Eingangsspannung
AC: 100-240 VAC, 50/60 Hz; DC: +12 VDC ±5%
Eingangsanschluss
AC: IEC 60320 C6; DC: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)
Eingangsfrequenz
Horizontal: 31.5-80 kHz / Vertical: 56.3-75 Hz
Monitorabmessungen (mit Standfuß)
15.4" x 8.0" x 14.4" / 391mm x 203mm x 366mm
Versandabmessungen
17.99" x 11.42" x 17.32" / 457mm x 290mm x 440mm
Gewicht (ohne Verpackung)
15.2 lb / 6.9 kg
Gewicht (mit Verpackung)
21.2 lb / 9.6 kg
Betriebstemperatur
0°C to 40°C / 32°F to 104°F
Lagertemperatur
-20°C to 60°C / -4°F to 140°F
Feuchtigkeit
Operating: 20%-80%; Storage: 10%-90%; noncondensing
Siegelfähigkeit
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF
50.000 Stunden, nachgewiesen
Standbewegungsoption
Tilt, removable
Montageoptionen
100 mm VESA mount
Threaded-through mounting holes, under standWeitere Merkmale
Security lock receptacle
Garantie
3 Jahre
Zertifizierungen und Konformitätserklärungen
Worldwide including Asia: UL, cUL, S, MPR II, FCC, CE, VCCI, IC, C-Tick
Asia: KC, CCC, BSMI, China RoHSAC-Stromkabel
A North American power cable is included with the part numbers available in the regions other than EMEA. European and UK AC power cables are included with the part numbers available for the EMEA region. AC power cables for power brick are also available at additional cost:
United States: Elo p/n - E042259
Europe: Elo p/n - E690013
United Kingdom: Elo p/n - E235317Kabel-Kit für Ersatzkabel
Elo p/n: E378229 (Gray); Elo p/n: E410150 (Beige) , available at additional cost.
Optionales Netzteil
The monitor may also be powered with DC voltage. An optional 12V DC power brick, Elo p/n - E785134, is available at additional cost.
Optionaler IntelliTouch-Stylus-Stift
D82064-000, available at additional cost.
Optional Acoustic Pulse Recognition (APR) Stylus Pen
E963860, available at additional cost.
Touch/Videokabel
Detachable touch and video cables are included.
Optionales Zubehör
Magnetstreifenleser (dunkelgrau MSR) - Elo Teilenr: E963462
Optionaler Standfuß
Part number E191105, available at additional cost.
