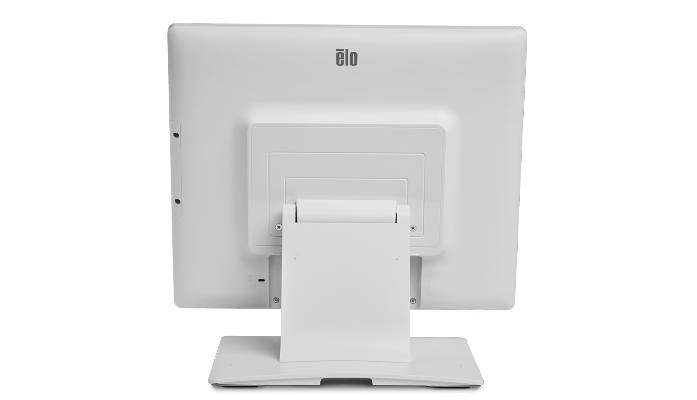

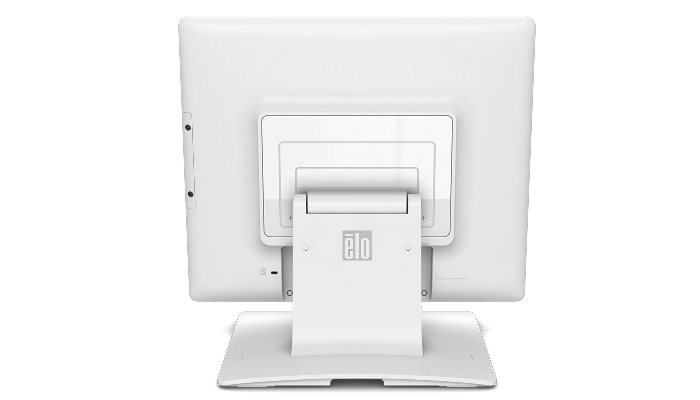

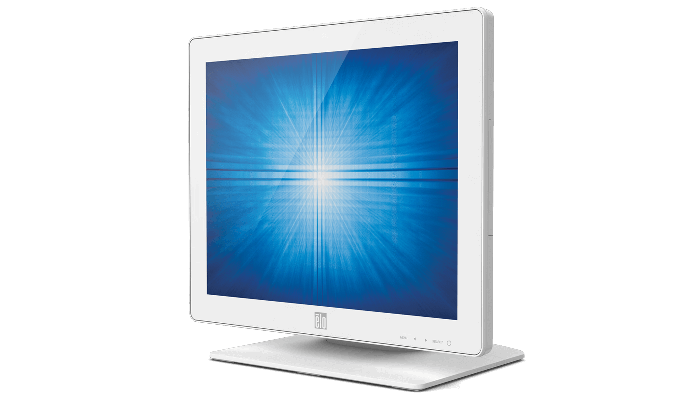

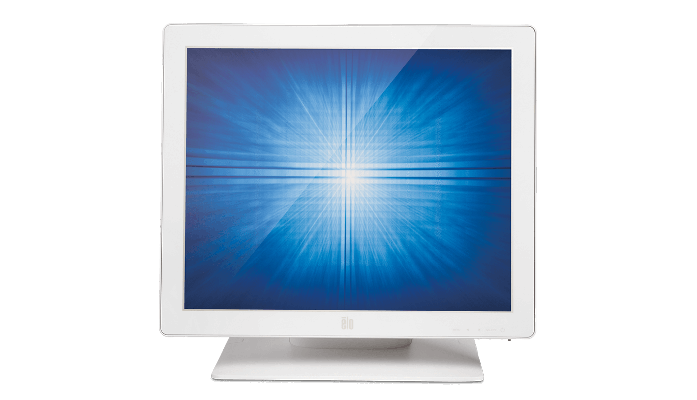

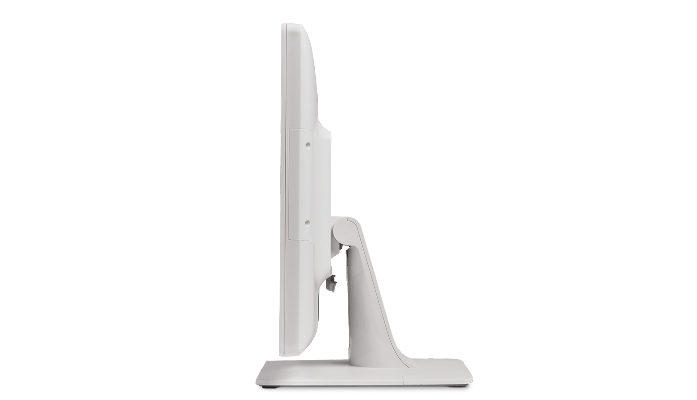

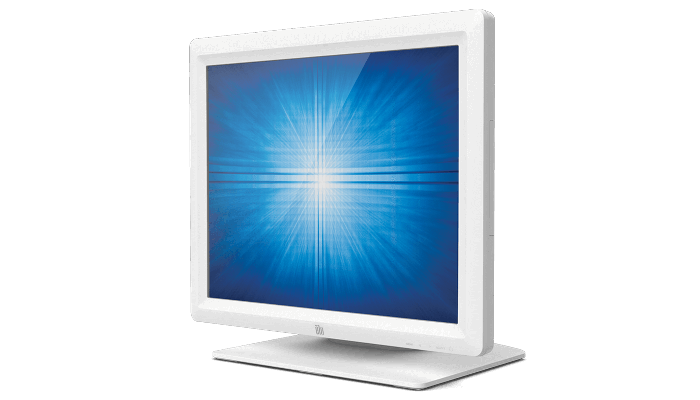

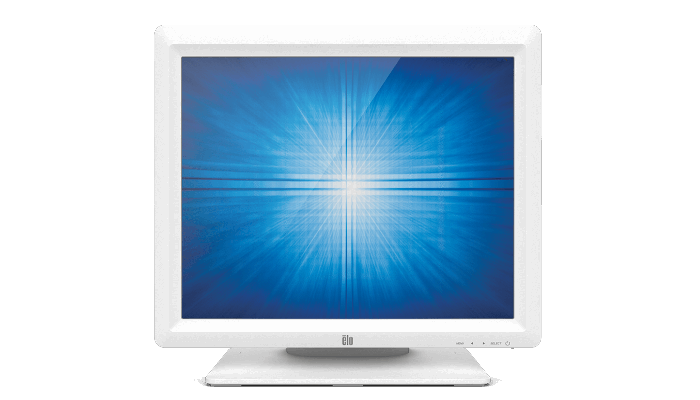

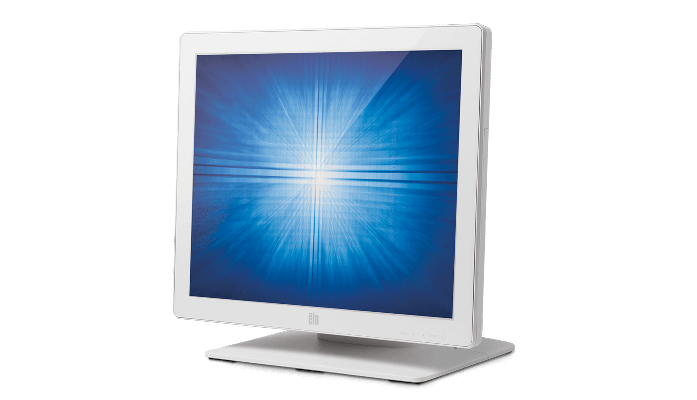

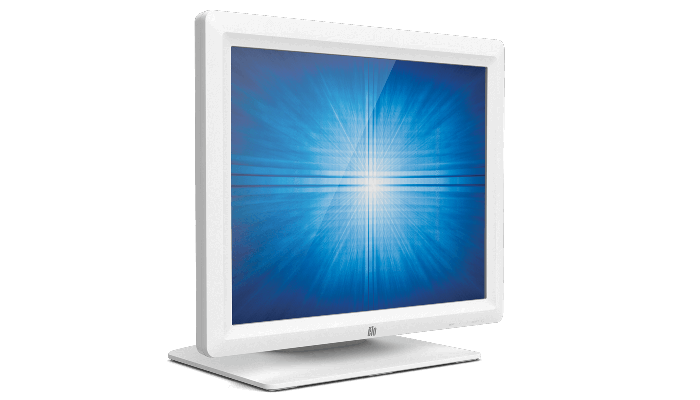

1717L 17" Touchscreen Monitor (Discontinued December 2018)
Overview
The Elo 1717L standard format touchscreen monitor is built to withstand the rigors of continuous public use with a rugged built-for-touch design. Its stylish, thin and modern look, coupled with a retail-focused feature set and is an attractive solution for commercial touchscreen monitor needs. The 1717L is well suited for point-of-sale, point-of-information, point-of-service, interactive signage and loyalty systems. The touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.
Integrated touch.The 17-inch touchscreen monitor offers a choice of four touchscreen technologies. AccuTouch® five-wire resistive is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. Both AccuTouch® five-wire resistive and IntelliTouch® surface acoustic wave (SAW) and IntelliTouch zero-bezel deliver the ultimate in optical quality for dry retail and hospitality applications. For a 10-touch tablet like experience, TouchPro® PCAP offers a clean edge-to-edge glass design perfect for multi-user interaction with fast and extremely sensitive responses right out of the box. |
 |
 |
MSR ready.The 1717L offers an optional three-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments. |
Flexible mounting.The Elo 1717L offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand. Capped through-mount holes on the base of the touchmonitor ensure table-top security. |
 |
Other features.
- Sleek and thin design with built-for-touch reliability
- Flexible and space-saving
- 60% Energy savings using LED technology
- Sealed touchscreen against dirt, dust and liquids
- Removable base and mounting options including VESA, wall and pole-mounting
- USB and RS232 serial connections
- Typical power consumption: 20W, internal and external power options
- Three-year standard warranty
Merkmale
-
Technische
Artikelnummer(n)
PCAP Black (Asia-Pacific & Japan) - E824217
Gehäusefarbe
Weiß oder schwarz
Touchtechnologie & Leistung
PCAP (projizierte Kapazitivsensorik) - 10-Touch
Bilddiagonale
17 zoll diagonal, Active-Matrix-TFT-LCD (LED)
Dicke des Bildschirms
1.7" / 43mm panel depth
Seitenverhältnis
5:4
Aktiver Bereich
13.3" x 10.64" / 337.92mm x 270.34mm
Auflösung
1280 x 1024
Andere unterstützte Auflösungen
640 x 480 @ 60Hz, 75Hz
720 x 400 @ 70Hz
800 x 600 @ 56Hz, 60Hz, 75Hz
1024 x 768 @ 60Hz, 75Hz
1280 x 1024 @ 60Hz, 75HzBlickwinkel
Horizontal: ±85° oder 170° insgesamt / Vertikal: ±80° oder 160° insgesamt
Farben
16,7 Millionen
Helligkeit (typisch)
LCD panel: 250 nits
PCAP: 225 nitsReaktionszeit gesamt (typisch)
5 msec
Kontrastverhältnis
1000:1
Touch-Benutzerschnittstelle
Serial (RS232) and USB
On-Screen-Display (OSD)
Accessible through switches along the bottom:
Controls: Menu, Up, Down, Select
Settings: Contrast, Brightness, H position, V-Position, Auto-Adjust, Aspect Ratio, Sharpness, Color, Temperature, Clock, Phase, OSD timeout, OSD Language, Recall, Defaults
Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
Lockouts: OSD, PowerVideo-Eingangsformat
Analog VGA on Female DB-15 connector
Video-Eingangsfrequenz
Horizontal: 31.5-80 kHz
Vertical: 56-75 HzStromverbrauch (typisch)
Monitor Only
ON: 16W
SLEEP: 3.0W
OFF: 0.5WEingangsspannung
AC: 100-240 VAC, 50/60 Hz; DC: +12VDC ±5%
Eingangsanschluss
AC: IEC 60320 C6 / DC: Coaxial power jack (2.0 mm pin diameter, 6.4 mm barrel diameter)
Adapter-Eingangsanschluss
IEC 60320 C14
Adapter-Eingangsspannung
100-240VAC, 50/60Hz
Monitorabmessungen (mit Standfuß)
15.43" x 8.38" x 14.24" / 391.9mm x 215.4mm x 361.6mm
Versandabmessungen
20.12" x 9.17" x 20.08" / 511mm x 233mm x 510mm
Gewicht (ohne Verpackung)
11.9 lbs / 5.4 Kg
Gewicht (mit Verpackung)
18.3 lbs / 8.3 Kg
Betriebstemperatur
0°C to 40°C / 32°F to 104°F
Lagertemperatur
20°C to 60°C / -4°F to 140°F
Feuchtigkeit
Operating: 20% to 80%; Storage: 10% to 90%
Siegelfähigkeit
Touchscreen sealed to bezel; Touchscreen sealed to LCD
MTBF
50.000 Stunden, nachgewiesen
Montageoptionen
75 mm VESA mount
Capped through-mount holesWeitere Merkmale
Security lock receptacle
Garantie
3 Jahre
Erweiterte Serviceoptionen
4 year warranty coverage - Elo P/N: E898247
5 year warranty coverage - Elo P/N: E898449
3 year warranty coverage + AUR - Elo P/N: E898648
4 year warranty coverage + AUR - Elo P/N: E894921
5 year warranty coverage + AUR - Elo P/N: E895125Zertifizierungen und Konformitätserklärungen
UL, cUL, FCC, IC, CCC, CE, VCCI, KCC, e-Standby, CoC, BSMI Mark, CB, RoHS, China RoHS, RCM, Argentinian S-Mark, WEEE
Im Lieferumfang enthalten
QIG, Japan Class-B TM info sheet, User Manual CD, VGA cable (DB-15 male to DB-15 male), USB cable (USB Type A plug to USB Type B plug), power cable, IEC 60320-C5 to NA/EU plug, Stand base assembly, Filler Plate
Ersatz-DC-Netzteil
The monitor may be powered with DC voltage. An optional 12V DC power brick, Elo P/N: E005277, is available at additional cost.
AC-Stromkabel
North American & EU power cables included. UK AC power cables included with P/Ns available for EMEA.
China: E030476
Japan: E849156 (3-pin to 2-pin adapter: E351985
UK: E235317
Taiwan: E637694Optionaler PCAP Stylus Pen
E066148
Touch/Videokabel
Detachable touch and video cables are included.
Optionales Zubehör
Magnetstreifenleser (schwarz MSR) - Elo Teilenr: E500356
Ständer, Halterungen & Kits
1717L VESA-Halterung (schwarz) - Elo Teilenr: E000405
Montagehalterung für 0700L als Rückseitendisplay - Elo-Teilenr: E332358
1717L Ersatzständer (weiß) - Elo Teilenr: E061177
1717L Ersatzständer (schwarz) - Elo Teilenr: E904304
