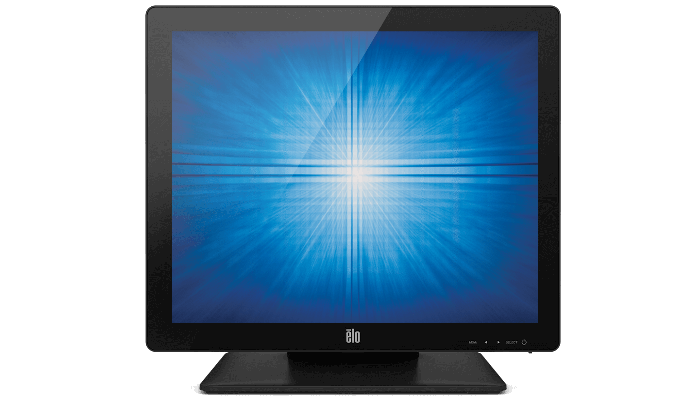

1717L 17" Touchscreen Monitor (Discontinued February 2014)
Overview
The 1717L zero-bezel touchmonitor is built to withstand the rigors of continuous public use with a rugged, “built for touch” industrial design. It delivers style and performance with a wide variety of features for a higher level of functionality. It is well suited for public venues where point-of-sale (POS), point-of-information (POI), point-of-service, shelf-level and countertop interactive digital signage, loyalty systems, kiosk information systems are found.
The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation, is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments. The 1717L features two leading zero-bezel touch touchscreen technologies for a smooth, easy-clean surface: AccuTouch five-wire resistive technology, the most widely used for retail applications and proven to survive splashing liquids, food and grease; IntelliTouch ZB pure-glass surface wave technology, for the ultimate in optical quality for dry retail and hospitality applications.
The 1717L Touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panels.
Other features.
- High performance, flexible and reliable
- Up to 1280 x 1024 resolution at 60 Hz, 75 Hz
- Available with AccuTouch 5-wire zero-bezel resistive technology (activated with fingernails, gloves, credit cards, or any stylus), IntelliTouch ZB Surface Wave Technology for superior image quality (activated with finger or glove)
- Optional ergonomic 3 stripe MSR available in two versions: USB with keyboard emulation; USB with human interface device (HID) class specification 1.1 and a choice of optional customer diplays
- Sealed touchscreen
- USB interface
- Removable stand and VESA mounting option
- Mounting holes on stand bottom for tabletop security
- Controls on the side rather than the front, plus lockout function for public use
- Digital on-screen display (OSD)
- Worldwide agency approvals
Merkmale
-
Technische
Artikelnummer(n)
AccuTouch (Antiglare, Worldwide) - E433551
AccuTouch (Antiglare, Worldwide) - E650075
IntelliTouch ZB (Antiglare, Worldwide) - E928533
IntelliTouch ZB (Antiglare, Worldwide) - E854392Gehäusefarbe
Weiß oder schwarz
Touchtechnologie & Leistung
5-Draht-Widerstandstechnologie (AccuTouch®) - Single-Touch
SAW ZB (IntelliTouch® akustische Oberflächenwelle) – Single TouchBilddiagonale
17 zoll diagonal, Active-Matrix-TFT-LCD (LED)
Seitenverhältnis
5:4
Aktiver Bereich
13.3" x 10.6" / 338mm x 270mm
Auflösung
1280 x 1024
Andere unterstützte Auflösungen
640x480 60Hz,75Hz
720x400 70Hz
800x600 56, 60Hz,75Hz
1024x768 60Hz,75Hz
1280x1024 60Hz,75HzBlickwinkel
Horizontal: ±85° oder 170° insgesamt / Vertikal: ±80° oder 160° insgesamt
Farben
16,7 Millionen
Helligkeit (typisch)
LCD panel: 250 nits
IntelliTouch ZB: 225 nits
AccuTouch: 200 nitsReaktionszeit gesamt (typisch)
30 msec
Kontrastverhältnis
800:1
Touch-Benutzerschnittstelle
USB: E433551, E650075, E928533, E854392
On-Screen-Display (OSD)
Digital OSD
Bedienelemente
Controls: Menu, Up, Down, Select
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Recall Defaults
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, PowerVideo-Eingangsformat
Analog VGA
Video-Eingangssignalanschluss
Mini D-Sub 15-Pin VGA type
Stromverbrauch (typisch)
AC: 21W
DC: Monitor only: 29W
Monitor + AC/DC Adapter: 36WStromversorgung
External DC (power brick)
Eingangsspannung
DC: +12 VDC ±5%
Eingangsanschluss
DC: Coaxial power jack (2.1mm pin outer diameter, 6.4mm barrel inner diameter)
Eingangsfrequenz
Horizontal: 31.5-80 kHz / Vertical: 56-75 Hz
Monitorabmessungen (mit Standfuß)
15.4" x 14.2" x 7.5" / 392mm x 360mm x 191mm
Versandabmessungen
18.5" x 16.8" x 8.9" / 471 mm x 426 mm x 226 mm
Gewicht (ohne Verpackung)
12.1 lbs / 5.5 kg
Gewicht (mit Verpackung)
16.5 lbs / 7.5 kg
Betriebstemperatur
0°C to 40°C / 32°F to 104°F
Lagertemperatur
-20°C to 60°C / -4°F to 140°F
Feuchtigkeit
Operating: 20%-80%; Storage: 10%-90%; noncondensing
Siegelfähigkeit
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF
50.000 Stunden, nachgewiesen
Montageoptionen
75 mm VESA mount
Threaded-through mounting holes, under standWeitere Merkmale
Security lock receptacle
Garantie
3 Jahre
Zertifizierungen und Konformitätserklärungen
Australia C-Tick, Canada cUL, IC, China CCC, Europe CE, Japan VCCI, Korea KCC, e-Standby, Mexico CoC, Taiwan BSMI Mark, United States UL, FCC, International CB
RoHS, China RoHS, WEEE, IMERCAC-Stromkabel
A North American and European power cables are included with the part numbers available in the regions other than EMEA. Uniked Kingdom AC power cables are included with the part numbers available for the EMEA region.
China: Elo p/n - E030476
Japan: Elo p/n - E849156
Japan 3-pin to 2-pin adapter: Elo p/n - E351985
United Kingdom: Elo p/n - E235317
Taiwan: Elo p/n - E637694Kabel-Kit für Ersatzkabel
Elo p/n: E378229 (Gray); Elo p/n: E410150 (Beige)
Optionales Netzteil
The monitor may be powered with DC voltage. A replacement 12V DC power brick, Elo p/n: E005277, is available at additional cost.
Touch/Videokabel
Detachable touch and video cables are included.
Optionales Zubehör
Magnetstreifenleser (schwarz MSR) - Elo Teilenr: E500356
Magnetstreifenleser (weiß MSR) - Elo Teilenr: E233227Ständer, Halterungen & Kits
1717L VESA-Halterung (weiß) - Elo Teilenr: E000421
1717L VESA-Halterung (schwarz) - Elo Teilenr: E000405
1717L Ersatzständer (weiß) - Elo Teilenr: E061177
1717L Ersatzständer (schwarz) - Elo Teilenr: E904304
