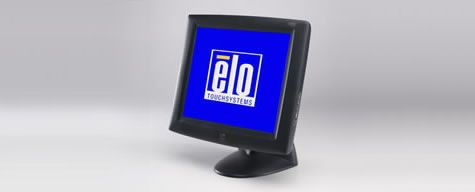

1725L 17" Touchscreen Monitor (Discontinued May 2006)
Overview
The 1725L was designed from a blank sheet of paper to address the key needs of touch applications, resulting in a product that can truly be called "designed for touch." It has a unique combination of flexibility, reliability, performance, ease-of-use and installation, all with a distinctive visual appeal.
Other features.
- High quality panel with 140°x140° viewing angle
- Analog and digital (DVI-D) video inputs
- "Designed for touch" features such as a stable tilt base (-5° from vertical to 90°/horizontal)
- Cables hidden from user's view
- Mounting holes on base bottom for tabletop security
- Base removable or reversible for wall mounting, plus VESA mounting option
- Built-in speakers located in display head
- Available with AccuTouch Five-Wire Resistive Technology, IntelliTouch Surface Wave Technology or Surface Capacitive Technology and dual serial/USB interface
- Sealed touchscreen
- Controls on the side rather than the front, plus lockout function for public use
- Multilingual on-screen display (OSD) with extras including speaker volume, treble, bass, and balance
- Long-lasting product cycle
- Worldwide agency approvals
Merkmale
-
Technische
Artikelnummer(n)
IntelliTouch (Antiglare, Worldwide) - 442072-001
Gehäusefarbe
Dunkelgrau
Touchtechnologie & Leistung
SAW (IntelliTouch® akustische Oberflächenwelle) – Single Touch
Bilddiagonale
17 zoll diagonal, Active-Matrix-TFT-LCD (LED)
Seitenverhältnis
5:4
Aktiver Bereich
13.3" x 10.6" / 338mm x 270mm
Auflösung
1280 x 1024
Andere unterstützte Auflösungen
1280 x 1024 at 60 or 75 Hz
1280 x 960 at 60 Hz
1152 x 864 at 75 Hz
1024 x 768 at 60, 65 Hz (Sun), 70 or 75 Hz
832 x 624 at 75 Hz (Mac)
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
640 x 480 at 60, 66 Hz (Mac), 72 or 75 HzBlickwinkel
Horizontal: ±70° or 140° total / Vertical: 60/67° or 127° total
Farben
16.2 million with dithering (6 bit)
Helligkeit (typisch)
LCD panel: 260 nits
IntelliTouch: 239 nitsReaktionszeit gesamt (typisch)
25 msec
Kontrastverhältnis
450:1
Video-Eingangsformat
Analog (no proprietary video card needed); Digital Video Input (DVI-D)
Video-Eingangssignalanschluss
Mini D-Sub 15-Pin; DVI-D
Stromversorgung
External power supply, 100-240 VAC, 50-60 Hz
Eingangsspannung
11.4-19.95 VDC; Current (12 VDC): 4A max; Current (19 VDC): 2.65A max.
Eingangsfrequenz
Horizontal: 31.5-80 kHz / Vertical: 56.3-75 Hz
Sync Types
Separate horizontal and vertical sync, composite sync and sync-on-green
Stromverbrauch (typisch)
50 W max.
Lautsprecher
Two watt/channel speakers located in display head
On-Screen-Display (OSD)
OSD lockouts for power and user controls
OSD extras include volume, treble, bass, balanceBedienelemente
Side: menu, up, down, select, power
OSD: contrast, brightness, H/V position, recall defaults, color temperature, volume, sharpness, phase, clock, OSD position, OSD time, auto adjust, nput select (analog or digital)
Languages: English, German, Spanish, Japanese, French
OSD disable/enable: power, volume, and/or OSD menuMonitorabmessungen (mit Standfuß)
17.1" x 16.9" x 9.62" / 434mm x 430mm x 244mm
Gewicht (mit Standfuß)
15.08 lb / 6.84 kg
Gewicht (ohne Verpackung)
20.92 lbs / 9.49 kg
Gewicht (mit Verpackung)
27.42 lbs / 12.44 kg
Betriebstemperatur
0°C to 40°C
Lagertemperatur
-20°C to 60°C
Feuchtigkeit
Operating: 20%-80%; Storage: 10%-90%; noncondensing
Montageoptionen
100 mm or 75 mm M4 VESA mount
100 mm M5 threaded holes on base bottom for table top security
Removable base
Reversible stand for wall mounting
Stand rotates from -5° (from vertical) to 90° (horizontal)
Optional stability plateLebensdauer der Hintergrundbeleuchtung
Typical 40,000 hours to half brightness
Garantie
3 Jahre
Zertifizierungen und Konformitätserklärungen
UL, cUL, FCC, IC, CE, TÜV-GS, VCCI, C-Tick, MPR II
Stromkabel
A North American power cable and a European power cable are included. For touchmonitors being shipped to the United Kingdom, add a UK power cable at no cost by specifying
Elo p/n: 276875-000.Optionales Netzteil
Elo p/n: E785134. Available at additional cost.
Touch/Videokabel
Detachable touch and video cables are included.
Stability Plate
Mounts to the pedestal of the monitor to increase stability. Elo p/n: D47582-000. Available at additional cost.
