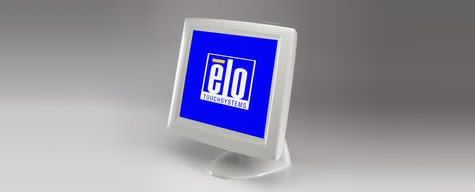

1727L 17" Touchscreen Monitor (Discontinued November 2006)

Merkmale

• Technische

  ---

  Artikelnummer(n)

  AccuTouch (Antiglare, Worldwide) - 227258-001
  IntelliTouch (Antiglare, Worldwide) - 869890-001

  Gehäusefarbe

  Beige

  Touchtechnologie & Leistung

  5-Draht-Widerstandstechnologie (AccuTouch®) - Single-Touch
  SAW (IntelliTouch® akustische Oberflächenwelle) – Single Touch

  Bilddiagonale

  17 zoll diagonal, Active-Matrix-TFT-LCD (LED)

  Seitenverhältnis

  5:4

  Aktiver Bereich

  13.3" x 10.6" / 338mm x 270mm

  Auflösung

  1280 x 1024

  Andere unterstützte Auflösungen

  1280 x 1024 at 60 or 75 Hz
  1280 x 960 at 60 Hz
  1152 x 864 at 75 Hz
  1024 x 768 at 60, 65 Hz (Sun), 70 or 75 Hz
  832 x 624 at 75 Hz (Mac)
  800 x 600 at 56, 60, 72 or 75 Hz
  720 x 400 at 70 Hz
  640 x 480 at 60, 66 Hz (Mac), 72 or 75 Hz

  Blickwinkel

  Horizontal: ±70° or 140° total / Vertical: 60/67° or 127° total

  Farben

  16.2 million with dithering (6 bit)

  Helligkeit (typisch)

  LCD panel: 260 nits
  AccuTouch: 213 nits
  IntelliTouch: 239 nits

  Reaktionszeit gesamt (typisch)

  25 msec

  Kontrastverhältnis

  450:1

  Video-Eingangsformat

  Analog (no proprietary video card needed); Digital Video Input (DVI-D)

  Video-Eingangssignalanschluss

  Mini D-Sub 15-Pin; DVI-D

  Touch-Benutzerschnittstelle

  Dual serial/USB: 227258-001, 869890-001

  Stromversorgung

  External power supply, 100-240 VAC, 50-60 Hz

  Eingangsspannung

  11.4-19.95 VDC; Current (12 VDC): 4A max; Current (19 VDC): 2.65A max.

  Eingangsfrequenz

  Horizontal: 31.5-80 kHz / Vertical: 56.3-75 Hz

  Sync Types

  Separate horizontal and vertical sync, composite sync and sync-on-green

  Stromverbrauch (typisch)

  50 W max.

  Lautsprecher

  Two watt/channel speakers located in display head

  On-Screen-Display (OSD)

  OSD lockouts for power and user controls
  OSD extras include volume, treble, bass, balance

  Bedienelemente

  Side: menu, up, down, select, power
  OSD: contrast, brightness, H/V position, recall defaults, color temperature, volume, sharpness, phase, clock, OSD position, OSD time, auto adjust, input select (analog or digital)
  Languages: English, German, Spanish, Japanese, French
  OSD disable/enable: power, volume, and/or OSD menu

  Monitorabmessungen (mit Standfuß)

  17.1" x 16.9" x 9.62" / 434mm x 430mm x 244mm

  Gewicht (ohne Standfuß)

  15.08 lb / 6.84 kg

  Gewicht (ohne Verpackung)

  20.92 lb / 9.49 kg

  Gewicht (mit Verpackung)

  27.42 lb / 12.44 kg

  Betriebstemperatur

  0°C to 40°C

  Lagertemperatur

  -20°C to 60°C

  Feuchtigkeit

  Operating: 20%-80%; Storage: 10%-90%; noncondensing

  Siegelfähigkeit

  Touchscreen sealed to bezel
  Touchscreen sealed to LCD

  Montageoptionen

  100 mm or 75 mm M4 VESA mount
  100 mm M5 threaded holes on base bottom for table top security
  Removable base
  Reversible stand for wall mounting
  Stand rotates from -5° (from vertical) to 90° (horizontal)
  Optional stability plate

  Lebensdauer der Hintergrundbeleuchtung

  Typical 40,000 hours to half brightness

  Garantie

  3 Jahre

  Zertifizierungen und Konformitätserklärungen

  UL, cUL, FCC, IC, CE, TÜV-GS, VCCI, C-Tick, MPR II

  Stromkabel

  A North American power cable and a European power cable are included. For touchmonitors being shipped to the United Kingdom, add a UK power cable at no cost by specifying
  Elo p/n: 276875-000.

  Optionales Netzteil

  Elo p/n: E219331. Available at additional cost.

  Touch/Videokabel

  Detachable touch and video cables are included.

  Stability Plate

  Mounts to the pedestal of the monitor to increase stability. Elo p/n: D47582-000, available at additional cost.
