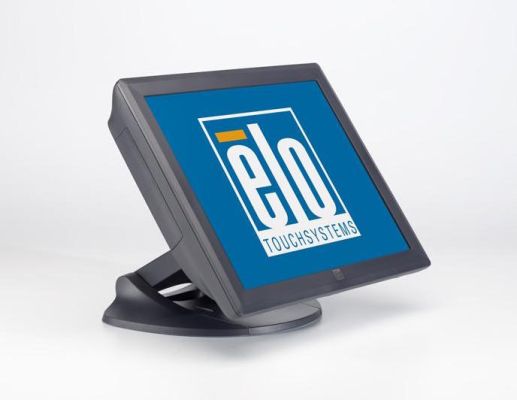

1729L Touchscreen Monitor (Discontinued November 2011)
Overview
The Elo 1729L 17" LCD integrated multifunction touchmonitor is an attractive solution for a variety of applications. Its optional peripherals can easily be integrated into the 1729L's compact design. A choice of up to three of the optional peripherals can be installed including: the magnetic stripe reader, vacuum fluorescent, rear-facing LED customer display, biometric fingerprint recognition device, and speaker bar with or without a built in single or omni-directional barcode scanner. Its 1280 x 1024 resolution with a 5:4 ratio displays clear, precise graphics, and a contrast ratio of 800:1, together with a typical LCD panel brightness of 300 nits, provides bright, high contrast for improved readability.
Other features.
- Seamless, integrated design
- Available with AccuTouch® Five-Wire Resistive Technology, Acoustic Pulse Recognition (APR) Technology, CarrollTouch Infrared Technology, IntelliTouch® Surface-Wave Technology and Surface Capacitive Technology
- Choice of desktop, wall or VESA mount
- "Designed for touch" with stable tilt stand, adjustable and removable for VESA mounting; also mounting holes in stand for secure desktop use
- Professional cable management hides cables from view
- Touchscreen sealed to resist dirt, dust, and splashes
- Controls on the side plus lockout function for public use
- An internal USB hub for minimal external connections
- Multi-lingual on-screen display (OSD)
- Optional ergonomic 3 stripe MSR available in two versions: USB with keyboard emulation; and USB with human interface device (HID)
- Security lock receptacle
- Long-lasting product cycle – enclosure controlled by Elo specifications
- Choice of gray or beige finish
- Worldwide agency approvals
- Three year warranty
Merkmale
-
Technische
Artikelnummer(n)
Surface Capacitive (Americas, Asia/Pacific) - E745513
Acoustic Pulse Recognition (Americas, Asia/Pacific) - E463022Gehäusefarbe
Dark Gray or Beige
Touchtechnologie & Leistung
Akustische Impulserkennung - Single Touch
Surface Capacitive (SCAP) - Single TouchBilddiagonale
17 zoll diagonal, Active-Matrix-TFT-LCD (LED)
Seitenverhältnis
5:4
Aktiver Bereich
13.3" x 10.6" / 338 mm x 270 mm
Auflösung
1280 x 1020
Andere unterstützte Auflösungen
1280 x 1024 at 60,75Hz
1280 x 960 at 60Hz
1024 x 768 at 60,65,70, 75 Hz
1152 x 864 at 75 Hz
720 x 400 at 70 Hz
832 x 624 at 75 Hz (Mac)
800 x 600 at 56, 60, 72, 75Hz
640 x 350 at 70Hz
640 x 480 at 60, 72, 75Hz
640 x 480 at 66 HzBlickwinkel
Horizontal: ±80° oder 160° insgesamt / Vertikal: ±80° oder 160° insgesamt
Farben
16,7 Millionen
Helligkeit (typisch)
LCD panel: 300 nits
Acoustic Pulse Recognition: 270 nits
Surface capacitive: 249 nitsReaktionszeit gesamt (typisch)
7.2 msec
Kontrastverhältnis
800:1
Touch-Benutzerschnittstelle
USB
Bedienelemente
Controls (side): menu, up, down, select, power
Settings: contrast, brightness, V-position, H-position, recall default, color temperature, volume, sharpness, phase, clock, OSD position, auto adjust, information, OSD timeout, input video select
Languages: English, French, German, Spanish, Japanese
Lockouts: power, user controlsLautsprecher
Two watt/channel speakers located in display head
Video-Eingangsformat
Analog VGA, DVI video (EMEA CarrollTouch models without DVI)
Video-Eingangssignalanschluss
Mini D-Sub 15-Pin VGA type, DVI-D connector
Stromverbrauch (typisch)
Monitor: 50 W
VFD customer display: 7.0 W
USB fingerprint reader: 0.95 W
USB magnetic stripe reader: 0.15 W
USB hub loaded: 7.0 W
Speaker bar with single line barcode scanner: 10.75 W
Speaker bar with omni-directional barcode scanner: 11.53 W
Speaker bar: 10.0 WStromversorgung
Internal AC, Optional external DC (power brick)
Eingangsspannung
AC: 100-240V, 50/60 Hz; DC: 12V ± 0.75V
Eingangsanschluss
AC: IEC 60320 C6; DC: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)
Eingangsfrequenz
Horizontal: 56.7-81.1 kHz / Vertical: 55-76 Hz
Monitorabmessungen (mit Standfuß)
15.4" x 15.0" x 9.4" / 391mm x 381mm x 239mm
Versandabmessungen
Touch only or touch with MSR: 20.09" x 9.65" x 17.91" / 510 mm x 255 mm x 455 mm
Touch with two+ peripherals: 21.65" x 10.04" x 20.47" / 550 mm x 255 mm x 520 mmGewicht (ohne Verpackung)
19.3 lbs / 8.8 kg
Gewicht (mit Verpackung)
24.7 lbs / 11.2 kg
Betriebstemperatur
0°C to 50°C / 32°F to 122°F
Lagertemperatur
-20°C to 60°C / -4°F to 140°F
Feuchtigkeit
Operating: 20-80%
Storage: 5-95%
noncondesingSiegelfähigkeit
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF
50.000 Stunden, nachgewiesen
Standbewegungsoption
Tilt, removeable, adjust height
Montageoptionen
100mm VESA mount
Weitere Merkmale
Field upgradeable peripherals
VESA DPMS
VESA DDC Plug and Play
Security lock receptacleGarantie
3 Jahre
Zertifizierungen und Konformitätserklärungen
UL, cUL, FCC-B, TÜV-T, CE, VCCI, C-Tick, MPRII
AC-Stromkabel
All appropriate cables are included and are detachable. EMEA model include EU and UK power cables.
Optional Acoustic Pulse Recognition (APR) Stylus Pen
E963860, available at additional cost.
Optionales Zubehör
Nordamerika Leistungssteine - Teilenr Elo: E348315
Europa Leistungssteine - Teilenr Elo: E162361
Britische Leistungssteine - Teilenr Elo: E334749
China Leistungssteine - Teilenr Elo: E834397
Taiwan Leistungssteine - Teilenr Elo: E953228
Korea Leistungssteine - Teilenr Elo: E986605
Japan Leistungssteine - Teilenr Elo: E033396
Argentinien Leistungssteine - Teilenr Elo: E707702Optional Accessories/Peripherals
Customer Display (2x20 VFD) (Dark Gray) - Elo p/n: E626003
Customer Display (2x20 VFD) (Beige) - Elo p/n: E351000
Magnetic Stripe Reader (Dark Gray) - Elo p/n: E246532
Magnetic Stripe Reader (Beige) - Elo p/n: E701607
Fingerprint Reader (Dark Gray) - Elo p/n: E477341
Fingerprint Reader (Beige) - Elo p/n: E417406
Speaker Bar (Dark Gray) No barcode scanner - Elo p/n: E182214
Speaker Bar (Beige) No barcode scanner - Elo p/n: E221190
Speaker Bar (Dark Gray) Single line barcode scanner) - Elo p/n: E382588
Speaker Bar (Beige) Single line barcode scanner) - Elo p/n: E185318
Speaker Bar (Dark Gray) Omni-directional barcode scanner) - Elo p/n: E798729
Speaker Bar (Beige) Omni-directional barcode scanner) - Elo p/n: E391239Optionaler Standfuß
Dark gray: Elo p/n: E408061; Beige: Elo p/n: E239639; available at additional cost.
