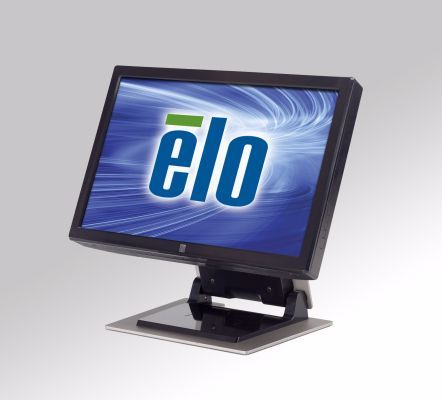

1900L 19" Touchscreen Monitor (Discontinued November 2015)
Overview
Consisting of a glass scratch-resistant touchscreen, the 1900L desktop touchmonitor delivers benefits that combine the ultimate in optical qualities with a stylish, built-for-touch design, developed for use in public environments.
The 1900L is available with IntelliTouch® SAW touch technology, a pure-glass touchscreen that provides superior optical performance.
Wide-aspect displays like the 1900L are easier to use and incorporate into the workplace than traditional desktop touchmonitors. The wide-screen format allows extra content on the screen and is quickly becoming preferred in corporate environments for publishing and dual window applications, and is popular in public venue environments due to a high-definition cinematic-like experience.
Typical applications include point-of-sale (POS), point-of-information (POI), point-of-service, interactive digital signage, loyalty systems, kiosk information systems, light industrial shop-floor automation and home control.
Other features.
- Wide-screen format provides more application space
- Pure glass construction provides superior optical performance
- "Designed for touch" features such as a stable tilt stand
- Space-saving built-in speakers
- Sleek, integrated design offers a stylish look for public venues
- User-lockable on-screen display – designed for public access
- Adjustable height stand provides the flexibility to be raised or lowered to meet the application's height requirements - can also be used in portrait mode
- VESA compliance makes wall or arm-mounting possible
- AC and DC power for maximum input flexibility
- VGA and DVI video input (Asia/Pacific models without DVI)
- Screen is resistant to water, dust, grease
- One-time factory calibration for easy deployment and integration
Merkmale
-
Technische
Artikelnummer(n)
IntelliTouch (Americas) - E619279
IntelliTouch (EMEA) - E500662Gehäusefarbe
Dark Gray or Beige
Touchtechnologie & Leistung
SAW (IntelliTouch® akustische Oberflächenwelle) – Single Touch
Bilddiagonale
19 zoll diagonal, Active-Matrix-TFT-LCD (LED)
Seitenverhältnis
4:3
Aktiver Bereich
16.1" x 10.1" / 408mm x 255mm
Auflösung
1440 x 900 at 60 Hz
Andere unterstützte Auflösungen
1680 x 1050 at 60 Hz
1440 x 900 at 60 Hz
1366 x 768 at 60 Hz
1360 x 768 at 60 Hz
1280 x 1024 at 60 or 75 Hz
1280 x 960 at 60 Hz
1280 x 768 at 65 Hz
1152 x 864 at 75 Hz
1024 x 768 at 60, 65, 72 or 75 Hz
832 x 624 at 75 Hz
800 x 600 at 56, 60 or 72 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66 or 72 HzBlickwinkel
Horizontal: ±80° oder 160° insgesamt / Vertikal: ±80° oder 160° insgesamt
Farben
16,7 Millionen
Helligkeit (typisch)
LCD panel: 250 nits
IntelliTouch: 225 nitsReaktionszeit gesamt (typisch)
5 msec
Kontrastverhältnis
1000:1
Touch-Benutzerschnittstelle
Dual serial/USB: E619279, E500662
Bedienelemente
Controls (side): menu, up, down, select, power
Settings: automatic adjustment, contrast, brightness, H/V position, clock, phase, fill screen, color temperature, input video select, OSD H/V position, OSD timeout, recall defaults, sharpness, volume, mute, input video select
Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
Lockouts: power, user controlsAudio-Eingangsanschluss
3.5mm TRS jack
Kopfhörerausgangsanschluss
3.5mm TRS jack
Lautsprecher
Two 2W internal speakers
Video-Eingangsformat
Analog VGA, DVI video (Asia/Pacific models without DVI)
Video-Eingangssignalanschluss
Mini D-Sub 15-Pin VGA type, DVI-D connector
Stromverbrauch (typisch)
70W
Stromversorgung
Internal AC, Optional external DC (power brick)
Eingangsspannung
AC: 100-240 VAC, 50/60 Hz; DC: 12 VDC ±5%
Eingangsanschluss
AC: IEC 60320 C6; DC: Coaxial power jack (2 mm pin diameter, 6.5 mm barrel diameter, 10 mm barrel length)
Eingangsfrequenz
Horizontal: 30-83 kHz / Vertical: 56-76 Hz
Monitorabmessungen (mit Standfuß)
17.7" x 11.8" x 15.0" / 449mm x 300mm x 380mm
Versandabmessungen
19.75" x 23.63" x 10.06" / 500mm x 600mm x 255mm
Gewicht (mit Standfuß)
19.9 lbs / 9.0 kg
Gewicht (ohne Standfuß)
13.2 lbs / 6.0 kg
Versandgewicht (mit Standfuß)
26.8 lbs / 12.2 kg
Betriebstemperatur
0°C to 40°C / 32°F to 104°F
Lagertemperatur
-20°C to 60°C / -4°F to 140°F
Feuchtigkeit
Operating: 20%-80%
Storage: 10%-90%
noncondensingHöhe
Operating: 0 to 3658m / 12,000 ft
Storage: 0 to 12,192m / 40,000 ftSiegelfähigkeit
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF
50.000 Stunden, nachgewiesen
Standbewegungsoption
Tilt, removable, adjust height, pivot (landscape/portrait mode)
Montageoptionen
100 mm VESA mount
Threaded-through mounting holes, under standWeitere Merkmale
Security lock receptacle
Garantie
3 Jahre
Zertifizierungen und Konformitätserklärungen
North America/Worldwide: USA UL, Canada cUL, Mexico NOM, CB
South America: Argentina S-mark
EMEA: Russia PCT
Asia: Australia C-Tick, Japan VCCI, Koreak eK, Korea MIC, Taiwan BSMI
Elo Declarations: RoHS, China RoHS, WEEE, IMERC, CEAC-Stromkabel
For touchmonitors being shipped to the Americas, a North American AC power cable is included.
For touchmonitors being shipped to EMEA, a European and a UK AC power cable are included.
For touchmonitors being shipped to Asia, AC power cords for China, Taiwan and Korea are included.Kabel-Kit für Ersatzkabel
Elo p/n: E378229 (gray) or E410150 (beige), available at additional cost.
Optionales Netzteil
Elo p/n: E480320 - North America power brick
Elo p/n: E252938 - European power brick
Elo p/n: E872515 - UK power brickOptionaler IntelliTouch-Stylus-Stift
D82064-000, available at additional cost.
Touch/Videokabel
Detachable touch, audio, power and video cables are included.
Optional Accessories/Peripherals
Desktop Stand (Dark gray) - Elo p/n: E647647
Desktop Stand (Beige) - Elo p/n: E830716.
