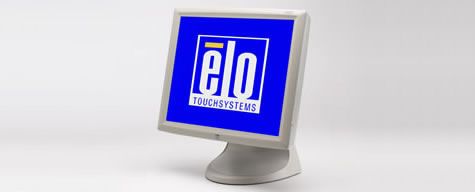

1927L 19" Touchscreen Monitor (Discontinued October 2007)
Overview
The 1927L 19" touchmonitor is the latest addition to the popular Elo desktop line, designed to address the key needs of touch applications requiring a large, visually appealing display. The 1927L can truly be called "designed for touch" with features such as a stable tilt base, OSD controls on the side with lockout feature for public use, speakers, and flexible input/output connectivity, including extra USB connections. It has a unique combination of performance, reliability, installation and ease-of-use, all with distinctive new styling.
Other features.
- High quality panel with 170°x170° viewing angle
- Analog and digital (DVI-D) video inputs, plus S-video input and RCA jack
- Two external USB ports for peripherals
- "Designed for touch" features such as a stable tilt base (-5° from vertical to 90°/horizontal)
- Cables hidden from user's view
- Mounting holes on base bottom for tabletop security
- Base removable or reversible for wall mounting, plus VESA mounting option
- Built-in speakers located in display head
- Available with AccuTouch Five-Wire Resistive Technology or IntelliTouch Surface Wave Technology and serial or USB interface
- Sealed touchscreen
- Controls on the side rather than the front, plus lockout function for public use
- Multilingual on-screen display (OSD) with extras including speaker volume, treble, bass, and balance
- Long-lasting product cycle
- Worldwide agency approvals
Merkmale
-
Technische
Artikelnummer(n)
AccuTouch (Serial, Antiglare, Worldwide) - E820608
AccuTouch (USB, Antiglare, Worldwide) - E319464
IntelliTouch (Serial, Antiglare, Worldwide) - E674496
IntelliTouch (USB, Antiglare, Worldwide) - E367777Gehäusefarbe
Beige
Touchtechnologie & Leistung
5-Draht-Widerstandstechnologie (AccuTouch®) - Single-Touch
SAW (IntelliTouch® akustische Oberflächenwelle) – Single TouchBilddiagonale
19 zoll diagonal, Active-Matrix-TFT-LCD (LED)
Seitenverhältnis
5:4
Aktiver Bereich
14.8" x 11.9" / 376mm x 301mm
Auflösung
1280 x 1024
Andere unterstützte Auflösungen
1280 x 1024 at 60 or 75 Hz
1152 x 864 at 75 Hz
1024 x 768 at 60, 65, 70 or 75 Hz
832 x 624 at 75 Hz (Mac)
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66, 72 or 75 HzBlickwinkel
Horizontal: ±85° oder 170° insgesamt / Vertikal: ±85° oder 170° insgesamt
Farben
16.7 million, 8-bit per color data
Helligkeit (typisch)
LCD panel: 300 nits
AccuTouch: 246 nits
IntelliTouch: 276 nitsReaktionszeit gesamt (typisch)
25 msec
Kontrastverhältnis
700:1
Touch-Benutzerschnittstelle
Serial: E820608, E674496
USB: E319464, E367777On-Screen-Display (OSD)
Digital
Locking OSD and/or powerBedienelemente
OSD: brightness, contrast, color temperature, H/V position, phase/clock, recall, auto-adjust, input select,
Languages: English, Spanish, German, French, Italian, Swedish, Finnish, Danish, Portuguese, Dutch, JapaneseAudio-Eingangsanschluss
Computer audio on 3.5mm stereo mini
Audio for video on dual RCA jacksLautsprecher
Two built-in, rear-facing 2W speakers in display head
Video-Eingangsformat
Digital Video Input (DVI-D), analog, S-Video, NTSC/PAL
Video-Eingangssignalanschluss
DVI-I, RCA, S-Video on monitor
DVI-D, HD-15, S-Video, RCA plugs via cablesStromverbrauch (typisch)
40 W
Stromversorgung
Internal, with jack to accept power from optional external brick
Eingangsspannung
85-265 V, 50-60 Hz and/or 12VDC @ 3.75A (max)
Eingangsanschluss
Inlets IEC60320-1C6 for AC and 5.5 mm external / 2.5 mm internal coaxial for DC; cords NEMA 15-3 and CEE 7 Schuko
Eingangsfrequenz
Horizontal: 31-80 kHz / Vertical: 56-75 Hz
Sync Types
Separate H & V, composite sync, sync-on-green
Monitorabmessungen (mit Standfuß)
17.2" x 18.0" x 9.49" / 436mm x 457mm x 241mm
Gewicht (ohne Verpackung)
21.5 lbs / 9.78 kg
Gewicht (mit Verpackung)
30.0 lbs / 13.6 kg
Betriebstemperatur
0°C to 40°C
Lagertemperatur
-20°C to 60°C
Feuchtigkeit
Operating: 20%-80%
Storage: 5%-90%
noncondensingMTBF
50.000 Stunden, nachgewiesen
Montageoptionen
100 mm M4 VESA mount
100 mm M5 threaded holes on base bottom for table top security
Removable base
Reversible stand for wall mounting
Stand rotates from -5° (from vertical) to 90° (horizontal)
Locking tilt controlGarantie
3 Jahre
Lebensdauer der Hintergrundbeleuchtung
50,000 hours
Zertifizierungen und Konformitätserklärungen
UL, cUL, TÜV-GS, CE, FCC, IC, VCCI, C-Tick Class B, CB Report, Certificate, MPRII, Section 508
AC-Stromkabel
North American and European AC power cables are included.
For touchmonitors being shipped to the United Kingdom, add a UK AC power cable at no cost by specifying Elo p/n: E540272.
A replacement North American AC power cable, Elo p/n: C45467-000, is available at additional cost.
AC power cables for power brick are also available at additional cost:
United States: Elo p/n: E042259
Europe: Elo p/n: E690013
United Kingdom: Elo p/n: E235317Optionales Netzteil
The monitor may also be powered with DC voltage. An optional 12V DC power brick, Elo p/n: E034907, is available at additional cost.
Optionaler IntelliTouch-Stylus-Stift
Stylus pen with rubber tip, designed specifically for use with IntelliTouch SAW touch technology. Elo p/n: D82064-000, available at additional cost.
Touch/Videokabel
Detachable touch and video cables are included. A replacement DVI-I to Analog video cable, Elo p/n: E38043-000, is available at additional cost.
Optionales Zubehör
Magnetstreifenleser (MSR) - Elo Teilenr: E039290
