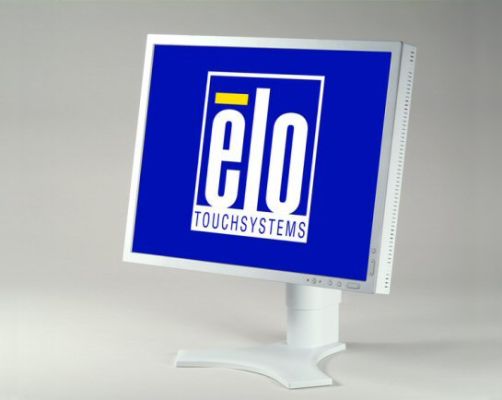

2020L 20" Touchscreen Monitor (Discontinued January 2007)
Overview
The 2020L touchmonitor is designed for retail POS, industrial, and government applications as well as interactive digital signage. The large display area is suitable for many different environments, including flight simulators, industrial equipment, interactive digital signage, and retail.
Other features.
- Available with AccuTouch® Five-Wire Resistive Technology or IntelliTouch® Surface Wave Technology and serial or USB interface
- High quality panel with 178° viewing angle
- Available in black or beige
- Can be used in portrait mode
- Adjustable height
- Carrying handle for easy transport
- Quick release stand
- Desktop stand can be removed or reversed for wall mounting option
- VESA mounting option
- Sealed touchscreen
- Controls on the side rather than the front
- Digital on-screen display (OSD)
Merkmale
-
Technische
Artikelnummer(n)
AccuTouch (USB, Antiglare, Worldwide) - E418308
AccuTouch (Serial, Antiglare, Worldwide) - E854384
AccuTouch (USB, Antiglare, Worldwide) - E973889
IntelliTouch (USB, Antiglare, Worldwide) - E637315
IntelliTouch (Serial, Antiglare, Worldwide) - E994124
IntelliTouch (USB, Antiglare, Worldwide) - E414923
IntelliTouch (Serial, Antiglare, Worldwide) - E735022Gehäusefarbe
Black or Beige
Touchtechnologie & Leistung
5-Draht-Widerstandstechnologie (AccuTouch®) - Single-Touch
SAW (IntelliTouch® akustische Oberflächenwelle) – Single TouchBilddiagonale
20.1" diagonal, Active matrix TFT L
Seitenverhältnis
4:3
Aktiver Bereich
16.14" x 12.12" / 409.9mm x 307.8mm
Auflösung
1600 x 1200 at 60 Hz
Andere unterstützte Auflösungen
1600 x 1200 at 60 Hz
1280 x 960 at 60 Hz
1280 x 1024 at 60-85 Hz
1200 x 1600 at 60 Hz
1152 x 864 at 70-85 Hz
1152 x 870 at 75 Hz
1024 x 768 at 60-85 Hz
832 x 624 at 75 Hz
800 x 600 at 56-85 Hz
720 x 400 at 70-85 Hz
640 x 480 at 60-85 Hz
640 x 400 at 70-85 Hz (digital)Blickwinkel
Horizontal: ±89° oder 178° insgesamt / Vertikal: ±89° oder 178° insgesamt
Farben
16,7 Millionen
Helligkeit (typisch)
LCD panel: 280 nits
AccuTouch: 238 nits
IntelliTouch: 266 nitsDot Pitch
0.255 mm
Reaktionszeit gesamt (typisch)
16 msec
Kontrastverhältnis
700:1
Touch Interfaces
Serial: E854384, E994124, E735022
USB: E418308, E973889, E637315, E414923On-Screen-Display (OSD)
Digital
Video-Eingangssignalanschluss
15pin D-sub, DVI-D, DVI-I and VGA
Stromverbrauch (typisch)
On: 50W
Power saving mode: < 1WStromversorgung
Internal AC
Eingangsspannung
AC 100–120V; AC 220–240V
Eingangsfrequenz
Analog
Horizontal: 31.5–91.1 kHz / Vertical: 50–85 Hz
Digital
Horizontal: 31.5–99.4 kHz / Vertical: 50–85 HzMonitorabmessungen (ohne Standfuß)
17.3" x 13.4" x 3.3" / 439.2mm x 340mm x 85mm
Monitorabmessungen (mit Standfuß)
17.3" x 22.3" x 9.7" / 439.2mm x 565.5mm x 247.3mm
Gewicht (mit Standfuß)
21.4 lbs / 9.7 kg
Gewicht (ohne Verpackung)
15.4 lbs / 7.0 kg
Betriebstemperatur
5°C to 35°C / 41°F to 95°F
Lagertemperatur
-10°C to 60°C / 14°F to 140°F
Feuchtigkeit
Operating: 30%-80%
Storage: 10%-85%
noncondensingMTBF
40,000 – 50,000 hours
Montageoptionen
100 mm VESA mount
Removable and adjustable base
Wall mountableGarantie
4-years parts and labor, including backlight
Lebensdauer der Hintergrundbeleuchtung
40,000 hours until half brightness
Zertifizierungen und Konformitätserklärungen
The approved monitor is not submitted for re-certification after touch modification.
