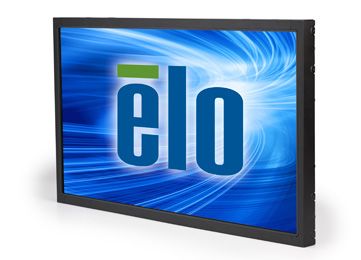

3243L 32" Open Frame Touchscreen (Discontinued April 2016)
Overview
The Elo Touch Solutions 3243L 32-inch full HD open-frame touchmonitor is available with a choice of two multi-touch touchscreen technologies, zero-bezel Projected Capacitive (PCAP) or IntelliTouch® Plus surface acoustic wave. The PCAP touchscreen offers a fast and extremely sensitive response similar to the experience on mobile devices and is compatible with Windows 7, Windows 8 and Windows10 operating systems with up to 10 touches recognized simultaneously.
IntelliTouch Plus surface acoustic wave dual-touch offers undistorted display clarity due to use of clear glass. State-of-the-art HD display technology is utilized including a high contrast/brightness LED-backlit LCD panel, extended color gamut with movie/ gaming/ photo modes, black level adjustment, and on-screen menu enhancements.
The 3243L touchmonitor is less than 2.3-inches (58mm) in total thickness. It also incorporates an LED-based LCD panel that reduces power consumption and heat enabling thinner and smaller kiosk designs for various applications in retail, hotels, gaming, transportation and other commercial uses. The touchscreen glass is tested with robust “ball-drop" requirements supporting applications in demanding public access environments.
The comprehensive range of features includes analog and digital interfaces, multi-lingual on-screen display (OSD), mounting VESA standard, mounting brackets, cabled remote on-screen display (OSD), and worldwide compliance.
Features
- 1920 x 1080 full HD provides a bright, high contrast display with wide-view angle that easily attracts and holds the user’s attention
- Projected Capacitive touchscreen offers up to 10-touches recognized simultaneously
- IntelliTouch Plus surface acoustic wave technology provides dual-touch performance
- Sleek design with less than 2.3-inch total thickness
- Commercial durability enabled with glass "ball-drop"
- Multiple mounting options are available
- Worldwide agency approvals and a 3-year standard warranty
Merkmale
-
Technische
Artikelnummer(n)
IntelliTouch DT (Clear, Worldwide) - E589724
IntelliTouch DT (Clear, Asia/Pacific) - E444804Gehäusefarbe
Schwarz
Touchtechnologie & Leistung
SAW (IntelliTouch® akustische Oberflächenwelle) – Dual Touch
Touch-Benutzerschnittstelle
USB
Bilddiagonale
32 zoll diagonal, Active-Matrix-TFT-LCD (LED)
On-Screen-Display (OSD)
Accessible through switches on the OSD Control Remote accessory. Controls (side): Menu, Up, Down, Select
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Video Source
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, Power
RTC Settings: The clock/time and the monitor ON/OFF schedule can be changed within this menu. Daylight Saving time is adjusted for automatically and will change the current time by one hour to accommodate daylight savings time.
See user manual for full details.Seitenverhältnis
16:9
Aktiver Bereich
27.57" x 15.54" / 700.4 mm x 394.85 mm
Auflösung
1920 x 1080
Andere unterstützte Auflösungen
640 x 480 at 60Hz
800 x 500 at 60Hz
800 x 600 at 56/60Hz
1024x768 at 60Hz
1280 x 720 at 60Hz
1280x960 at 60 Hz
1280x1024 at 60Hz
1360x768 at 60 Hz
1366x768 at 60 Hz
1440x900 at 60 Hz
1600x1200 at 60 Hz
1680x1050 at 60 Hz
1920x1080 at 60 HzBlickwinkel
Horizontal: ±89° oder 178° insgesamt / Vertikal: ±89° oder 178° insgesamt
Farben
16,7 Millionen
Helligkeit (typisch)
LCD Panel: 500 nits
IntelliTouch DT: 450 nitsReaktionszeit gesamt (typisch)
8 msec
Kontrastverhältnis
3000:1
Video-Eingangsformat
Analog VGA, HDCP-capable HDMI 1.3 (WW model only), DVI (Asian model only)
Video-Eingangssignalanschluss
Female DE-15 VGA, HDMI Type A Receptacle Connector (WW model only),
Female DVI-D Dual Link Connector (Asian model only)Stromversorgung
Internal AC
Eingangsspannung
AC: 100-240 VAC, 50/60 Hz
Eingangsanschluss
AC: IEC 60320 C14
Eingangsfrequenz
Horizontal: 60 – 73KHz
Vertical: 47-63 HzStromverbrauch (typisch)
Power Consumption (Typical at 120V at 60Hz):
ON (monitor + AC/DC adapter): 47.4W
SLEEP (monitor + AC/DC adapter): 1.1W
OFF (monitor + AC/DC adapter): 0.1W
Power Consumption (Typical at 230V at 50Hz):
ON (monitor + AC/DC adapter): 47.1W
SLEEP (monitor + AC/DC adapter): 1.1W
OFF (monitor + AC/DC adapter): 0.1WAbmessungen
29.0" x 17.4" x 2.25" / 736.4 mm x 443 mm x 57.2 mm
Versandabmessungen
39.05" x 26.45" x 11.65" / 992 mm x 672 mm x 296 mm
Gewicht (ohne Verpackung)
26.7 lb / 12.1 kg
Gewicht (mit Verpackung)
24.6 lb / 11.2 kg
Betriebstemperatur
0°C to 40°C / 32°F to 104°F
Lagertemperatur
-20°C to 60°C / -4°F to 140°F
Feuchtigkeit
Operating: 20-80%
Storage: 10-90%MTBF
50.000 Stunden, nachgewiesen
Garantie
3 Jahre
Zertifizierungen und Konformitätserklärungen
Argentina S-Mark; Australia C-Tick; Canada CUL, IC; China CCC;
Europe CE; Japan VCCI; Korea KC, KCC, e-Standby;
Mexico CoC; Russia EAC; Taiwan BSMI;
United States UL, FCC; International CB;
RoHS, China RoHS, WEEE
United States UL 60950 ball-drop compliantMontageoptionen
400mm x 200mm VESA mount
Side mounting brackets includedOptionen / Peripheriegeräte / Erweiterungen
OSD-Fernbedienung (RJ45) - Elo Teilenr: E483757
Austauschkabelsatz - Elo Teilenr: E378229
IntelliTouch Touch-Stift - Elo Teilenr: D82064-000
Austauschhalterungssatz für 3243L IT-Modell - Elo Teilenr: E727550
Unterputz-Kit für PCAP 3243 - Elo Teilenr.: E312503Touch/Videokabel
All appropriate cables are included and are detachable
Optionaler IntelliTouch-Stylus-Stift
Stylus pen with rubber tip, designed specifically for use with IntelliTouch or iTouch surface wave touch technology. Part number D82064-000, available at additional cost
