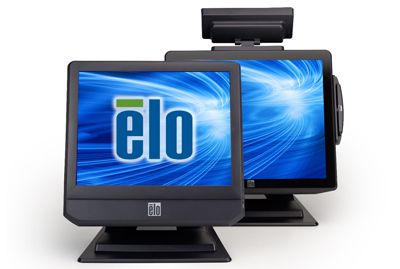

B3 Rev.A Touchcomputer (Discontinued June 2013)
Overview
The Elo B-Series Rev.A All-in-One touchcomputer platform simply provides in a compact design, more flexibility with a choice of configuration and connectivity options, more serviceability with easy access to key components, and more processing power. In addition, a wide array field-installable peripherals, spill-resistant sealing, and a selection of input/output port connection options make the B-Series Rev.A both versatile and powerful. It is designed with the future in mind, allowing easy field serviceability of all of the main components.
The B-Series Rev.A is engineered for flexibility, with multiple memory and storage configurations, as well as scalable computing power featuring three high-performance processor configurations: Cool and Quiet B2 Fan-less Intel Atom Dual-Core 1.66 GHz, Performance B1 Fan-cooled Intel Celeron Dual-Core 2.2GHz or Performance Ultra B3 Fan-cooled Intel Core 2 Duo 3.0 GHz.
The flexibility, serviceability and performance of the B-Series Rev.A are rare in commercial All-in-One touchcomputers. In a stylish, compact design, the B-Series Rev.A provides three highly configurable, ruggedized touchcomputers, in two screen sizes – 15-inch and 17-inch, plus the choice of three industry-leading Elo touch technologies. The B-Series Rev.A touchcomputer family has been developed to meet the diverse needs of a wide variety of point-of-sale (POS), point-of-information (POI), and point-of-service venues, including retail and hospitality display units, customer loyalty systems, internet access sites, digital signage as well as bedside entertainment, home automation and control.
Other features
- Choice of high-performance processor configurations - Facilitates a wide range of business and computing options
- Full range of standard connectivity ports plus expansion ports to add functionality - One system can be tailored to meet virtually any application or business requirement
- Second hard drive option for expanded storage or RAID configuration - Enables extra storage capacity or disk mirroring (RAID) for data protection
- Customer-installable peripheral, memory and storage options - Easily upgrade as business needs grow; down-time is minimized with easy-to-install system upgrade options for complete compatibility in a harmonious design
- Supports industry standard low profile PCI-E (PCI Express) expansion cards - Outstanding configurability/customization options to meet all your connectivity needs
- "Designed for touch" from the ground-up; stable stand and tiltable display with VESA mount for table-top, wall or pole mounting options - Stability to withstand the rigors of use in a public environment; mounting options to complement store layout and customer traffic
- 3 year warranty plus Elo quality and reliability - Satisfaction and peace of mind from nearly 40 years of experience built into all products
Merkmale
-
Technische
Artikelnummer(n)
15-inch AccuTouch (Antiglare, Worldwide) - E643109
17-inch AccuTouch (Antiglare, Worldwide) - E634336
15-inch AccuTouch (Antiglare, Worldwide) - E218254
17-inch AccuTouch (Antiglare, Worldwide) - E986405
15-inch AccuTouch (Antiglare, Worldwide) - E689177
17-inch AccuTouch (Antiglare, Worldwide) - E923025
15-inch AccuTouch (Antiglare, Worldwide) - E109239
17-inch AccuTouch (Antiglare, Worldwide) - E903857
15-inch AccuTouch (Antiglare, Worldwide) - E246058
17-inch AccuTouch (Antiglare, Worldwide) - E036742
15-inch AccuTouch (Antiglare, Worldwide) - E419608
17-inch AccuTouch (Antiglare, Worldwide) - E922366
15-inch IntelliTouch (Antiglare, Worldwide) - E322742
17-inch IntelliTouch (Antiglare, Worldwide) - E220702
15-inch IntelliTouch (Antiglare, Worldwide) - E029640
17-inch IntelliTouch (Antiglare, Worldwide) - E552112
15-inch IntelliTouch (Antiglare, Worldwide) - E193599
17-inch IntelliTouch (Antiglare, Worldwide) - E166438
15-inch IntelliTouch (Antiglare, Worldwide) - E630820
17-inch IntelliTouch (Antiglare, Worldwide) - E287274
15-inch IntelliTouch (Antiglare, Worldwide) - E850522
17-inch IntelliTouch (Antiglare, Worldwide) - E082960
15-inch IntelliTouch (Antiglare, Worldwide) - E083730
17-inch IntelliTouch (Antiglare, Worldwide) - E298566
15-inch Acoustic Pulse Recognition (Antiglare, Worldwide) - E686884
17-inch Acoustic Pulse Recognition (Antiglare, Worldwide) - E946671
15-inch Acoustic Pulse Recognition (Antiglare, Worldwide) - E064057
17-inch Acoustic Pulse Recognition (Antiglare, Worldwide) - E202303
15-inch Acoustic Pulse Recognition (Antiglare, Worldwide) - E574487
17-inch Acoustic Pulse Recognition (Antiglare, Worldwide) - E728542
15-inch Acoustic Pulse Recognition (Antiglare, Worldwide) - E071289
17-inch Acoustic Pulse Recognition (Antiglare, Worldwide) - E798032
15-inch Acoustic Pulse Recognition (Antiglare, Worldwide) - E541063
17-inch Acoustic Pulse Recognition (Antiglare, Worldwide) - E790994
15-inch Acoustic Pulse Recognition (Antiglare, Worldwide) - E455429
17-inch Acoustic Pulse Recognition (Antiglare, Worldwide) - E413523Gehäusefarbe
Dunkelgrau
Touchtechnologie & Leistung
5-Draht-Widerstandstechnologie (AccuTouch®) - Single-Touch
SAW (IntelliTouch® akustische Oberflächenwelle) – Single Touch
Akustische Impulserkennung - Single TouchProzessor
Intel 1.66GHz Atom Dual-Core D510
1MB L2 Cache
533MHz System BusBIOS
Phoenix
Arbeitsspeicher (RAM)
1GB Low-Profile DDR2 DIMM
on 1 of 2 slots
(Expandable to 4GB maximum on 2 slots)Festplatte
160GB 2.5” SATA HDD
Chipsatz
Intel NM10 Express
Bilddiagonale
15 zoll diagonal, Active-Matrix-TFT-LCD (LED)
Bedientasten
Controls (bottom): menu, up, down, select, power
Settings: brightness, contrast, phase, auto adjust, H-position, V-position, clock, sharpness, RGB, OSD H-position, OSD V-position, OSD time, OSD language, recall, power button
Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
Lockouts: user controlsSeitenverhältnis
4:3
Aktiver Bereich
12.0" x 9.0" / 304.1mm x 228.1mm
Auflösung
1024 x 768 @ 60Hz
Farben
16,7 Millionen
Helligkeit (typisch)
LCD panel: 250 nits
AccuTouch: 200 nits
Acoustic Pulse Recognition: 225 nits
IntelliTouch: 225 nitsReaktionszeit gesamt (typisch)
8 msec
Kontrastverhältnis
700:1
Blickwinkel
Horizontal: ±70° oder 140° insgesamt / Vertikal: 65°/60° oder 125° insgesamt
USB-Ports
6 x USB 2.0 (4 on I/O, 1 x USB Side Access, 1 x USB Hidden/Protected)
Additional internal ports available for optional Elo peripheralsSerielle Ports
2 x USB-to-Serial RS-232 (standard)
Ethernet-Port
1 x LAN RJ45 (Gigabit)
Drahtlosverbindung
Optional USB wireless kit available (802.11b/g/n)
Kassenladen-Port
Optional cash drawer kit available (12V/24V default; selectable via jumper)
Zusätzlicher Video-Ausgang
Optional 2nd VGA port expansion card
Audio-Ports
1 x 3.5mm line-in
1 x 3.5mm line-out
1 x 3.5mm mic-inLautsprecher
Two 2W internal speakers
Betriebssystem
Ohne Betriebssystem
Windows XP Professional Service Pack 3 (32-bit only)
Windows POSReady 2009
Windows 7 Professional (32-bit only)Sprachen
Windows XP – 24 Sprachengruppen; Windows 7 – 35 Sprachengruppen
Windows POSReady 2009 – 32 Language groupsStromversorgung
External 12VDC universal-type power supply brick
AC input voltage: 100-240VAC
Input frequency: 50-60Hz
Maximum output power: 150W (Max draw: 170W)Eingangsspannung
100-240VAC
Stromverbrauch (typisch)
36W
Max. Abmessungen des Touchcomputers mit Standfuß
14.0" x 14.3" x 10.5" / 354mm x 363mm x 267mm
Max. Abmessungen des Touchcomputers ohne Standfuß
14.0" x 14.3" x 14.1" / 355mm x 364mm x 359mm
Versandabmessungen
17.4" x 21.9" x 10.2" / 443mm x 555mm x 258mm
Gewicht (mit Standfuß)
19.0 lbs / 8.6 kg
Gewicht (ohne Standfuß)
14.2 lbs / 6.4 kg
Gewicht (mit Verpackung)
27.6 lbs / 12.5 kg
Betriebstemperatur
32°F to 95°F / 0°C to 35°C
Lagertemperatur
-4°F to 140°F / -20°C to 60°C
Feuchtigkeit
Operating: 20% to 80%
Storage: 5% to 95%Zertifizierungen und Konformitätserklärungen
UL/cUL, CE, CCC, NOM, AR S-Mark, FCC, GOST-R, C-Tick, TUV, VCCI
Echtzeituhr
Lithium-Ionen-Akku
MTBF
50.000 Stunden, nachgewiesen
Montageoptionen
100mm VESA mount or secure base to tabletop or desktop
Garantie
3 Jahre
Siegelfähigkeit
Touchscreen sealed to bezel (IntelliTouch)
Touchscreen sealed to sub-bezel (AccuTouch, APR)
Touchscreen sealed to LCD (all)Stromkabel
North American and European power cables included
Weitere Merkmale
Serviceable internal components
Removable base with 100mm VESA mountingM
Threaded holes on bottom of base for mountingErweiterungsoptionen
Wireless Adapter (USB, 802.11b/g/n)
Cash Drawer Port (12V/24V) expansion card
Second VGA Port expansion card
Modem PCI-E Card
Parallel Port PCI-E CardErsatz-DC-Netzteil
12V DC power brick, part number E806884, is available at additional cost.
Optionaler IntelliTouch-Stylus-Stift
D82064-000, available at additional cost.
Optional Acoustic Pulse Recognition (APR) Stylus Pen
E963860, available at additional cost
Optional Accessories/Peripherals
Second 160GB Hard Disk Drive (HDD)
64GB Solid State Drive (SSD)
Second HDD/SSD Mounting Bracket Kit only
1GB Low-Profile DDR2 Memory DIMM Kit
2GB Low-Profile DDR2 Memory DIMM Kit
4GB Low-Profile DDR2 Memory DIMM Kit
Magnetic Stripe Reader- Elo P/N: E545781
Customer Display (2x20 VFD) - Elo P/N: E879762
Biometric Fingerprint Reader (FPR) - Elo P/N: E375206Magnetic Stripe Reader (MSR)
The MSR is a USB 2.0 device that reads all three data stripes on standard credit cards or driver's licenses conforming to ISO/ANSI standards. The MSR has foreign language capability. The MSR is powered from the USB port; no external power is needed. The MSR features are:
- Reads up to 3 tracks of information
- Bidirectional swipe reading
- Superior reading of high jitter, scratched, and worn
MagStripe cards
- Reliable for over 1,000,000 card swipes
- Reads ISO7811, AAMVA, and most other card data formats
- PC software makes configuration changes easy
- Swipe speeds from 3 to 60 inches per second
- Interfaces: USB-IDTech-HID
- Fully supports USB 2.0
