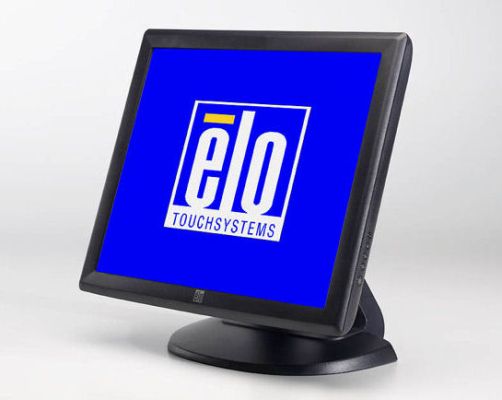

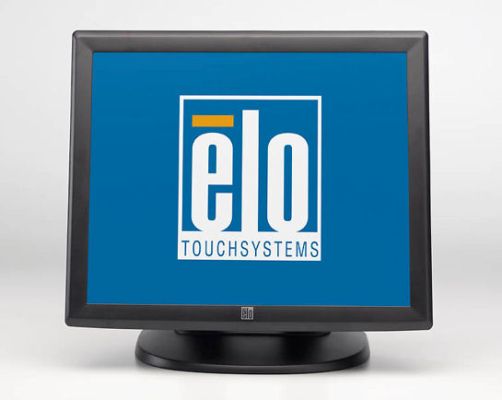

1928LM 19" Touchscreen Monitor (Discontinued June 2015)
Overview

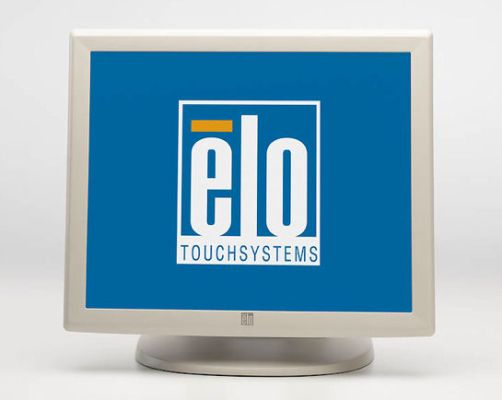

The fully featured 1928L touchmonitor offers best-in-class optical performance mated to the medical industry's leading touch technologies–IntelliTouch surface acoustic wave, APR (acoustic pulse recognition), and AccuTouch five-wire resistive–in addition to a combination touch controller, DVI, VGA and built-in speakers. The product can be ordered in beige or gray color, touch and non-touch enabled versions.
The 1928L carries a wide array of electronic certifications, RoHS compliance and includes an innovative IPX1 enclosure design which sheds water and is safe from liquid drops and spills. As a result the 1928L is an excellent fit for a wide variety of healthcare applications. The Elo medical touchmonitor is also a cost-effective solution for nurse station, computer-aided therapy, electronic medical record keeping, paperless charting, patient self check-in/registration applications, as well as non-medical applications benefiting from DVI-D input, speakers and best-in-class image performance.
Other features.
- A wide array of electronic certifications and IPX1 drip-proof enclosure
- Long lasting product cycle–enclosure controlled by Elo specifications
- Touch can be activated with gloved hands
- 5-second power down delay (prevents accidental power shut down)
- Leading edge optical performance
- 178° x 178° viewing angle
- 1300:1 contrast ratio
- 300-nit brightness
- Analog and digital (DVI-D) video inputs
- Built in speakers located in the display head
- "Designed for touch" features such as a stable tilt stand
- Available with AccuTouch Five-Wire Resistive Technology, Acoustic Pulse Recognition Technology, IntelliTouch Surface Wave Technology, and as non-touch enabled version
- Combination controller (both Serial and USB)
Merkmale
-
Technische
Artikelnummer(n)
AccuTouch (Dual serial/USB, Antiglare, Americas, EMEA) - E935808
AccuTouch (Dual serial/USB, Antiglare, Americas, EMEA) - E522556
AccuTouch (Dual serial/USB, Antiglare, Asia/Pacific) - E686117
AccuTouch (Dual serial/USB, Antiglare, Asia/Pacific) - E139551
IntelliTouch (Dual serial/USB, Antiglare, Americas, EMEA) - E897317
IntelliTouch (Dual serial/USB, Antiglare, Americas, EMEA) - E188117
IntelliTouch (Dual serial/USB, Antiglare, Asia/Pacific) - E746115
IntelliTouch (Dual serial/USB, Antiglare, Asia/Pacific) - E499616
Non-touch (Antiglare, Asia/Pacific) - E205676
Non-touch (Antiglare, Asia/Pacific) - E266366
Non-touch (Antiglare, Americas, EMEA) - E939583
Non-touch (Antiglare, Americas, EMEA) - E586024Gehäusefarbe
Dark Gray or Beige
Touchtechnologie & Leistung
5-Draht-Widerstandstechnologie (AccuTouch®) - Single-Touch
SAW (IntelliTouch® akustische Oberflächenwelle) – Single Touch
Ohne TouchsensorikBilddiagonale
19 zoll diagonal, Active-Matrix-TFT-LCD (LED)
Seitenverhältnis
5:4
Aktiver Bereich
14.8" x 11.9" / 376mm x 301mm
Auflösung
1280 x 1024 at 60 Hz
Andere unterstützte Auflösungen
1280 x 1024 at 60 or 75 Hz
1280 x 960 at 60 Hz
1152 x 864 at 75 Hz
1024 x 768 at 60, 65, 70 or 75 Hz
832 x 624 at 75 Hz (Mac)
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66, 72 or 75 HzBlickwinkel
Horizontal: ±89° oder 178° insgesamt / Vertikal: ±89° oder 178° insgesamt
Farben
16,7 Millionen
Helligkeit (typisch)
LCD panel: 300 nits
AccuTouch: 246 nits
IntelliTouch: 276 nitsReaktionszeit gesamt (typisch)
20 msec
Kontrastverhältnis
1300:1
Touch-Benutzerschnittstelle
Dual serial/USB
On-Screen-Display (OSD)
Controls (side): menu, up, down, select, power
Settings: contrast , brightness, H-position, V-position, recall default, RGB, volume, sharpness, phase, clock, OSD H-position, OSD V-position, OSD timeout, auto adjust, input select
Languages: English, French, Dutch, Spanish, Swedish, Italian, Chinese, Polish, Japanese
Lockouts: power, user controlsLautsprecher
2 watt/channel speakers located in display head
Video-Eingangsformat
Analog VGA, DVI-D
Video-Eingangssignalanschluss
Mini D-Sub 15-Pin VGA type, DVI-D connector
Stromverbrauch (typisch)
48W
Stromversorgung
External power adapter; efficiency rating: CAT: V
Eingangsspannung
DC: 12.0 V ± 0.60 V
Eingangsanschluss
DC: Coaxial power jack (2.5 mm pin diameter, 6.3 mm barrel diameter, 9.5 mm barrel length)
Eingangsfrequenz
Horizontal: 31.5–80 kHz / Vertical: 56.3–75 Hz
Monitorabmessungen (mit Standfuß)
16.9" x 15.4" x 8.3" / 429mm x 390mm x 212mm
Versandabmessungen
21.27" x 20.09" x 11.23" / 540mm x 510mm x 315mm
Gewicht (mit Standfuß)
17.7 lbs / 8.0 kg
Gewicht (ohne Standfuß)
13.5 lbs / 6.1 kg
Versandgewicht (mit Standfuß)
26.1 lbs / 11.8 kg
Betriebstemperatur
0°C to 40°C / 32°F to 104°F
Lagertemperatur
-20°C to 60°C / -4°F to 140°F
Feuchtigkeit
Operating: 20%-80%
Storage: 10%-90%
noncondensingSiegelfähigkeit
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF
50.000 Stunden, nachgewiesen
Standbewegungsoption
Tilt, removable
Montageoptionen
100 mm VESA mount
Threaded-through mounting holes, under standWeitere Merkmale
2 stage DPMS
VESA DDC, Plug & Play
Five-second power down delay function
Security lock receptacleGarantie
3 Jahre
Zertifizierungen und Konformitätserklärungen
North America / Worldwide models: UL, cUL, CB, MPR II, CE, FCC, VCCI, IC, C-TICK (Class B), ANSI, AAMI 60601-1:2005, UL 60601-1:2003, EN 60601-1-2:2007, CISPR 11:2009+A1:2010 Class B, IEC60529:IPX1
Asia models: UL, cUL, CB, MPR II, CE, FCC, VCCI, IC, C-TICK (Class B), KC, CCC, China RoHS; ANSI, AAMI 60601-1:2005, UL 60601-1:2003, EN 60601-1-2:2007, CISPR 11:2009+A1:2010 Class B, IEC60529:IPX1Stromkabel
North American and European power cables are included.
For touchmonitors being shipped to the United Kingdom, add a UK power cable at no cost by specifying Elo p/n: E235317.Kabel-Kit für Ersatzkabel
Elo p/n: E450339, available at additional cost.
Optionales Netzteil
Elo p/n: E448370, available at additional cost.
Optionaler IntelliTouch-Stylus-Stift
D82064-000, available at additional cost.
Touch/Videokabel
Detachable touch and video cables are included.
