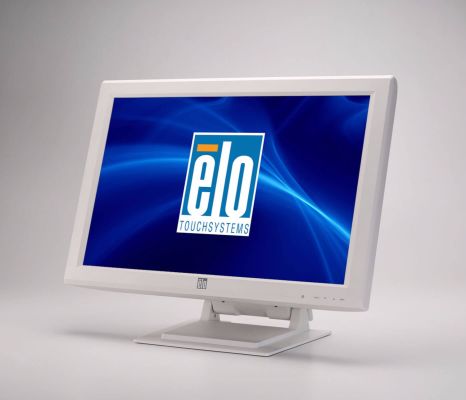

2400LM 24" Touchscreen Monitor (Discontinued July 2012)
Overview
The fully featured 2400LM touchmonitor offers best-in-class optical performance mated to leading touch technologies – IntelliTouch® surface acoustic wave and AccuTouch® five-wire resistive–in addition to a combination touch controller, DVI, VGA and built-in speakers, available in white or gray color. The 2400LM is compliant with multiple safety and electrical certifications including EN 60950-1 and EN 60601-1 for safety and EN 60950-1, EN55022, EN55024, and EN 60601-1-2 for EMC and the 2400LM meets RoHS compliance. As a result the 2400LM is an excellent fit for a wide variety of settings, including healthcare.
The Elo 2400LM touchmonitor is an effective solution for nurse station, computer-aided therapy, electronic medical record keeping, paperless charting, patient self check-in/registration, as well as non-medical applications that benefit from DVI-D input, speakers and a pristine image display.
Other features.
- High quality panel wide viewing angles, and high contrast ratio - Best-in-class optical performance
- Available with AccuTouch five-wire resistive touchscreen or IntelliTouch surface acoustic wave touchscreen - Choice of touch technology optimized for a wide variety of modalities
- Design is tightly controlled by Elo specifications - Elo touchmonitors have a long history of availability, which is important to maintain continuity through all phases of project roll-outs and servicing
- Removable base with mounting options including - Affords installation flexibility with both wall and arm-mounting capabilities
- EN 60950-1 and EN 60601-1 for safety; EN 55011, EN 55024, EN 6100-3-3 and EN 60601-1-2 for EMC - Recognized by public health authorities in most countries as the safety standard for certain medical electrical equipment
- RoHS compliant - Meets the lead-free, Restriction of Hazardous Substances requirements
- 3 year warranty - Fosters customer satisfaction and peace of mind; 1 year or 2 year extended warranty services available at additional cost
- Built-in speakers - For applications that require audio
Merkmale
-
Technische
Artikelnummer(n)
IntelliTouch (USB and Serial, Anti-glare, North America) - E902744
IntelliTouch (USB and Serial, Anti-glare, North America) - E857644
IntelliTouch (USB and Serial, Anti-glare, Europe) - E741895
IntelliTouch (USB and Serial, Anti-glare, Japan) - E226665
AccuTouch (USB and Serial, Anti-glare, North America) - E553861
AccuTouch (USB and Serial, Anti-glare, Europe) - E140509Gehäusefarbe
Dark Gray or White
Touchtechnologie & Leistung
5-Draht-Widerstandstechnologie (AccuTouch®) - Single-Touch
SAW (IntelliTouch® akustische Oberflächenwelle) – Single TouchBilddiagonale
24 zoll diagonal, Active-Matrix-TFT-LCD (LED)
Seitenverhältnis
16:10
Aktiver Bereich
20.4" x 12.8" / 518mm x 324mm
Auflösung
1920 x 1200
Andere unterstützte Auflösungen
640 x 480 at 60Hz
800 x 600 at 56, 60Hz
1024 x 768 at 60Hz
1280 x 960 at 60Hz
1280 x 1024 at 60Hz
1360 x 768 at 60Hz
1440 x 900 at 60 Hz
1600 x 1200 at 60 Hz
1680 x 1050 at 60 Hz
1920 x 1200 at 60 HzBlickwinkel
Horizontal: ±80° oder 160° insgesamt / Vertikal: ±80° oder 160° insgesamt
Farben
16,7 Millionen
Helligkeit (typisch)
LCD panel: 300 nits
AccuTouch: 240 nits
IntelliTouch: 270 nitsReaktionszeit gesamt (typisch)
5 msec
Kontrastverhältnis
1000:1
Touch-Benutzerschnittstelle
USB and Serial
Bedienelemente
Controls: menu, up, down, select, power
Settings: automatic adjustment, contrast, brightness, H/V position, clock, phase, color temperature, OSD H/V position, OSD timeout, recall defaults, sharpness, volume
Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
Lockouts: OSD, powerAudio-Eingangsanschluss
3.5mm TRS jack
Audio-Eingangssignalbereich
0.5Vrms maximum stereo signal
Lautsprecher
Two 2W internal speakers
Video-Eingangsformat
Analog VGA, DVI video
Video-Eingangssignalanschluss
15-pin female D-sub (Analog VGA, 25-pin female DVI-D (DVI）
Video-Eingangsfrequenz
0.5Vrms maximum stereo signal
Stromverbrauch (typisch)
Monitor only: 50W
Monitor + AC/DC adapter: 61WStromversorgung
AC/DC power adapter
Eingangsspannung
AC: 100-240VAC, 50/60Hz; DC: 12V +/- 10%
Eingangsanschluss
MINI DIN 4pin power jack; IEC 60320 C6
Eingangsfrequenz
Horizontal: 31-75 kHz / Vertical: 56-61 Hz
Sync Types
Separate H&V syncs, Composite Sync, and Sync-On-Green (Analog VGA）
Versandabmessungen
27.6" x 20.1" x 10.0" / 700mm x 510mm x 255mm
Gewicht (mit Standfuß)
27.8 lbs / 12.6kg
Gewicht (ohne Standfuß)
21.5 lbs / 9.8kg
Versandgewicht (mit Standfuß)
36.4 lbs / 16.5kg
Betriebstemperatur
0°C to 40°C / 32°F to 104°F
Lagertemperatur
-20°C to 60°C / -4°F to 140°F
Feuchtigkeit
Operating: 20% to 80%
Storage: 10% to 90%
noncondensingMTBF
50.000 Stunden, nachgewiesen
Montageoptionen
With provided stand (on flat surface or bolted to surface via holes in base) in landscape
100mm VESA rear-mountWeitere Merkmale
Security lock receptacle
Garantie
3 Jahre
Zertifizierungen und Konformitätserklärungen
CB, CCC, UL, cUL, FCC, CE, VCCI, C-Tick (Class B), IEC60601-1-2 (3rd Edition)
Elo Declarations: RoHS, WEEE, IMERC, CEAC-Stromkabel
AC power cables for power brick are also available at additional cost:
United States: Elo p/n: E587451
Europe: Elo p/n: E076657
United Kingdom: Elo p/n: E048881Optionales Netzteil
Hospital-grade power cord for US/Canada; European power cord.
Elo p/n: E260110, available at additional cost.Optionaler IntelliTouch-Stylus-Stift
D82064-000, available at additional cost.
Touch/Videokabel
Detachable touch and video cables are included.
