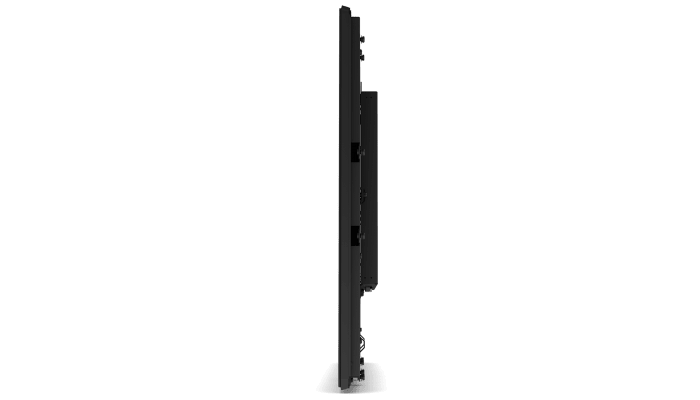

2494L 23.8" Open Frame Touchscreen (Rev B - Discontinued April 2019)
Elo 2494L Open Frame Touchscreen Display
The Elo 2494L 24-inch open frame touchscreen display delivers an industrial-grade solution that is cost-effective for OEMs and systems integrators requiring a reliable product for their customers. Designed with reliability from the start, Elo's open frames deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses. The 90-Series product line is available in a wide range of sizes, touch technologies and brightness, offering the versatility needed for commercial kiosk applications from self-service and gaming to industrial automation and healthcare.
Design Your Solution with Elo
-
Self-Service
-
Gaming
-
Healthcare
-
Industrial Automation
We chose Elo touchscreens to power our award-winning
BLUE FIRE Kiosk because they offered
the ease of
integration into our enclosure... We knew we could rely on
a durable,
long lifecycle product that will deliver a high
quality interactive experience for years
to come.
Ralf Hovenga
Managing Director, Pan Oston
Enabling Partners to Build Smarter Kiosks
With EloView and the Backpack, managing kiosks is EASY! Pair your Elo interactive open frame with the Elo Backpack and EloView to create an affordable, scalable, single-architecture deployment. The Backpack provides a low-power, solid-state, fan-less computing solution running Android 7.1 (Nougat) and when paired with EloView, you can remotely manage kiosks out-of-the-box with seamless device and content control.
Flexibility for Your Install
Our commercial-grade open frames can be mounted in landscape, portrait, and face-up orientations providing optimal flexibility for mounting in any table, kiosk, or cabinet design. Whether viewing directly, at an angle, or from a distance, our open frames offer what you need while maintaining optimal clarity and the viewing experience you want to deliver.
Touch Thru Glass
Enabled with PCAP
Our TouchPro® PCAP technology supports touch thru
functionality for installations
that require a front layer of glass with
thickness’s up to 6mm or solutions that require
specific IP ratings.
Whether you need a flush-mounted display or one that is
fully-encased behind a cover glass, our robust PCAP Open
Frames are purpose-built for
durability in various applications and
environments: from self-service kiosks to highly
used gaming
cabinets to harsh industrial machines.
Interactive Open Frames From 10 to 55-inches
1093L 10" (16:10)
1291L 12" (4:3)
1590L 15" (4:3)
1593L 15" (16:9)
1598L 15" (4:3)
1790L 17" (5:4)
1990L 19" (5:4)
1991L 19" (5:4)
2094L 20" (16:9)
2293L 22" (16:9)
2294L 22" (16:9)
2494L 24" (16:9)
2794L 27" (16:9)
3243L 32" (16:9)
4243L 42" (16:9)
4343L 43" (16:9)
5543L 55" (16:9)
Connections
Built for Commercial Use
We pride ourselves on being one of the best manufacturers in the market – We design and build the complete solution, with touch integrated from the start. Our robust touchscreen solutions offer flexibility for diverse environments and have undergone rigorous testing to ensure the longest life possible for our product - maximizing your ROI.
-
Backed by our 3-year standard
warranty with an optional
extension to 4 or 5-years. -
Purpose built for touch at
the factory level -
Compliant with UL-60950 &
IK-07 impact testing -
Ready for use 24/7
-
Designed and tested to ensure
reliable long life in the field -
Well-suited for use in any high
traffic or harsh environments.
Merkmale
-
Technische
Artikelnummer(n)
TouchPro PCAP (Worldwide) - E331987
Gehäusefarbe
Schwarz
Touchtechnologie & Leistung
PCAP (TouchPro® projizierte Kapazitivsensorik) – 10 Touch
Touch-Benutzerschnittstelle
USB 2.0
Bilddiagonale
23,8 zoll diagonal, Active-Matrix-TFT-LCD (LED)
On-Screen-Display (OSD)
Accessible through switches on the unit’s tethered OSD Control box.
Controls: Menu, Up, Down, Select, Power
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Thru (Only available for TouchPro PCAP)
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, PowerSeitenverhältnis
16:9
Aktiver Bereich
20.75" x 11.67" / 527.04mm x 296.46mm
Auflösung
1920 x 1080
Andere unterstützte Auflösungen
640 x 480 60Hz
720 x 400 70Hz
800 x 500, 60Hz
800 x 600 56, 60Hz
1024 x 768 60Hz
1280 x 800 60Hz
1280 x 1024 60Hz
1366 x 768 60Hz, 60Hz RB
1440 x 900 60Hz, 60Hz RB
1680 x 1050 60Hz, 60Hz RB
1920 x 1080 50, 60HzBlickwinkel
Horizontal: ±89° oder 178° insgesamt / Vertikal: ±89° oder 178° insgesamt
Farben
16,7 Millionen
Helligkeit (typisch)
LCD panel: 250 nits
TouchPro PCAP: 225 nitsReaktionszeit gesamt (typisch)
16 msec
Kontrastverhältnis
3000:1
E/A-Anschlüsse
USB TypeB, RJ45 for OSD remote key, VGA, HDMI, DisplayPort, 12V D/C in
Video-Eingangsformat
HDMI V1.3 Type A receptacle for HDMI input
Analog VGA on Female DB-15 connector
DisplayPort V1.1a - Supports later versions of DisplayPort video inputVideo-Eingangsfrequenz
Horizontal: 30 - 82 KHz
Vertical: 50 - 75 HzStromversorgung
External DC - Optional power brick (sold separately)
Stromanschluss (Monitor)
Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) barrel depth)
Eingangsspannung
12VDC +/- 5%
Netzbuchse Koaxial
DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) barrel length)
Stromverbrauch (typisch)
Monitor + Adapter at 230V/50Hz
ON: 27.3 W
SLEEP: 1.5 W
OFF: 0.5WAbmessungen
22.41" x 13.43" x 1.46" / 569.2mm x 341.1mm x 37mm
Versandabmessungen
27.24" x 17.8" x 7.48" / 692mm x 452mm x 190mm
Gewicht (ohne Verpackung)
14.1 lbs / 6.39 Kg
Gewicht (mit Verpackung)
19.3 lbs / 8.75 Kg
Betriebstemperatur
0°C to 40°C / 32°F to 104°F
Lagertemperatur
-20°C to 60°C / -4°F to 140°F
Feuchtigkeit
Operating: 20% to 80%
Storage: 10% to 95%Siegelfähigkeit
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF
50.000 Stunden, nachgewiesen
Garantie
3 Jahre
Erweiterte Serviceoptionen
1 Year Extended Warranty - Elo P/N: E188404
2 Year Extended Warranty - Elo P/N: E572038Zertifizierungen und Konformitätserklärungen
Australia RCM; Canada cUL, IC; China CCC; Europe CE TUV; Japan VCCI; Korea KCC; Mexico CoC; Taiwan BSMI; United States UL, FCC; International CB; RoHS, China RoHS, WEEE
GLI 27 kV air / 8 kV contact ESD compliant (TouchPro PCAP only)
UL 60950 ball-drop compliant (TouchPro PCAP only)
IK07 impact compliant (TouchPro PCAP only)Montageoptionen
200x100mm VESA mount on rear of unit
Flush mount with included bracketsIm Lieferumfang enthalten
HDMI cable
VGA Cable
RJ45 OSD Remote
Touch USB Cable
Quick Install Guide
For Zero-Bezel Models: Flush Mount Brackets w/Screws
For Bezeled - IntelliTouch/IntelliTouch DT Models: “L” (Side Mount) Brackets and w/Screws
EEI Label
Japan Class-B TM info sheetOptionen / Peripheriegeräte / Erweiterungen
OSD-Fernbedienung (RJ45) - Elo Teilenr: E483757
Elo Backpack® - Elo P/N: E611864
Austauschkabelsatz (HDMI-, VGA-, USB- und Serielle Kabel) - Elo Teilenr: E546861
Kabelsatz DVI-D auf HDMI - Elo Teilenr: E538507
Kabelsatz DP auf DP - Elo Teilenr: E582895
Netzadapter- und Kabelsatz für Nordamerika - Elo Teilenr: E005277
Netzadapter- und Kabelsatz für Europa & Korea - Elo Teilenr: E571601
Netzadapter- und Kabelsatz für GB - Elo Teilenr: E180092
Netzadapter- und Kabelsatz für China - Elo Teilenr: E558862
Netzadapter- und Kabelsatz für Taiwan - Elo Teilenr: E818655
Netzadapter- und Kabelsatz für Japan - Elo Teilenr: E182546
Netzadapter- und Kabelsatz für Argentinien - Elo Teilenr: E887099
Netzadapter- und Kabelsatz für Australien - Elo Teilenr: E637593
Elo 24-Zoll Breite Planmontagehalterung - Elo-Teilenr.: E000879Optionaler PCAP Stylus Pen
E066148
